9-1415513-1

9-1415513-1

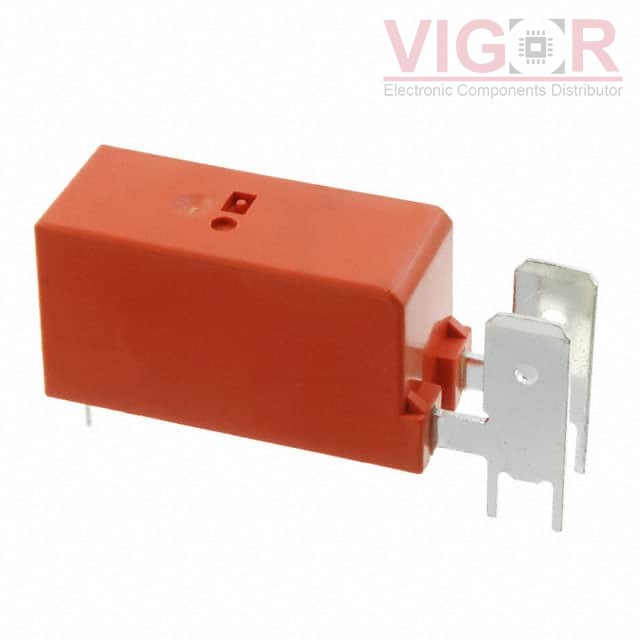

Image is for reference,
please contact us to get the real picture

Part No :

9-1415513-1

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPST 16A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
9-1415513-1 PDF
Availability
0 pieces
Unit Price
$4.41900

Current price of 9-1415513-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

9-1415513-1 Specifications
Type Description
Series:RF, SCHRACK
Package:Tray
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:24VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):16 A
Switching Voltage:400VAC - Max
Coil Current:16.7 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:Sealed - Flux Protection
Coil Insulation:Class F
Must Operate Voltage:16.8 VDC
Must Release Voltage:2.4 VDC
Operate Time:11 ms
Release Time:7 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
