ALE7PB05

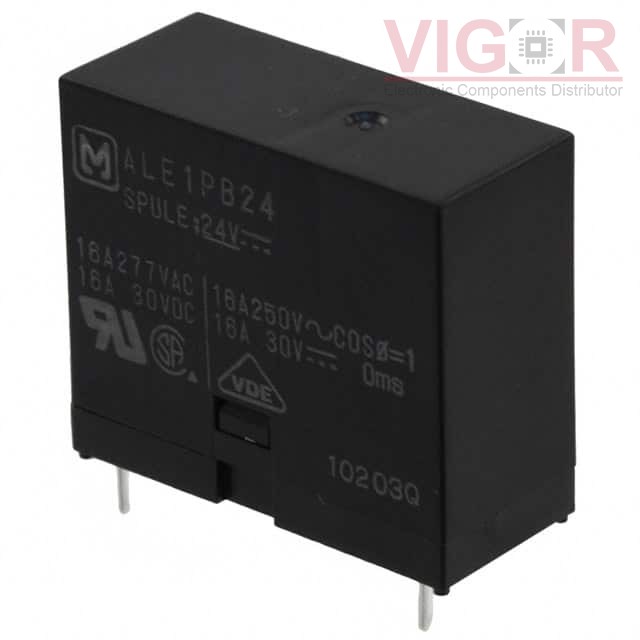

Image is for reference,
please contact us to get the real picture

Part No :: ALE7PB05

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 16A 5V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: ALE7PB05 PDF

Availability: 0 pieces

Unit Price: ~~$1.92600~~

Current price of ALE7PB05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ALE7PB05 Specifications

Type	Description
Series:	ALE
Package:	Tray
Part Status:	Not For New Designs
Mounting Type:	Through Hole
Coil Voltage:	5VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	16 A
Switching Voltage:	277VAC - Max
Coil Current:	40 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	-
Coil Insulation:	Class B
Must Operate Voltage:	3.75 VDC
Must Release Voltage:	0.25 VDC
Operate Time:	20 ms
Release Time:	25 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
