JQ1A-B-18V-F

JQ1A-B-18V-F

Image is for reference,
please contact us to get the real picture

Part No :

JQ1A-B-18V-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 5A 18V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
JQ1A-B-18V-F PDF
Availability
88 pieces
Unit Price
$2.76000

Current price of JQ1A-B-18V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JQ1A-B-18V-F Specifications
Type Description
Series:JQ
Package:Bulk
Part Status:Not For New Designs
Mounting Type:Through Hole
Coil Voltage:18VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):5 A
Switching Voltage:250VAC, 110VDC - Max
Coil Current:11.1 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:Class B
Must Operate Voltage:13.5 VDC
Must Release Voltage:0.9 VDC
Operate Time:20 ms
Release Time:10 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT RH4V2-UDC24V

RH4V2-UDC24V

RELAY GEN PURPOSE 4PDT 10A 24V
HOT RM332024

RM332024

RELAY GEN PURPOSE 3PDT 10A 24V

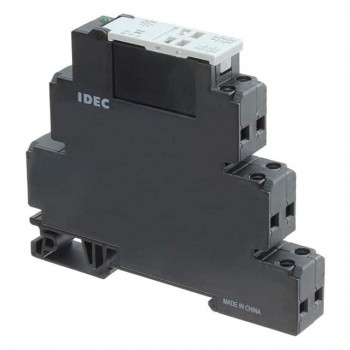

HOT RV8H-1L1-D9
