HE2AN-Q-AC24V

HE2AN-Q-AC24V

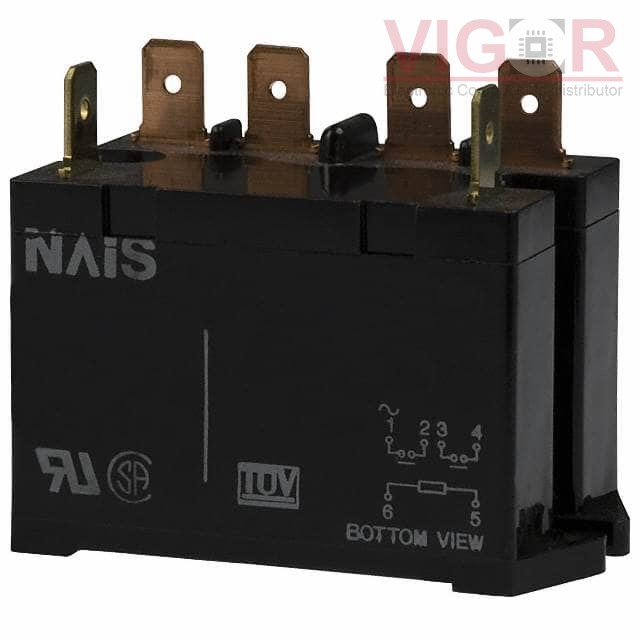

Image is for reference,
please contact us to get the real picture

Part No :

HE2AN-Q-AC24V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPST 25A 24V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
HE2AN-Q-AC24V PDF
Availability
12 pieces
Unit Price
$24.16000

Current price of HE2AN-Q-AC24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HE2AN-Q-AC24V Specifications
Type Description
Series:HE
Package:Tube
Part Status:Active
Mounting Type:Chassis Mount
Coil Voltage:24VAC
Contact Form:DPST-NO (2 Form A)
Contact Rating (Current):25 A
Switching Voltage:277VAC, 30VDC - Max
Coil Current:74 mA
Coil Type:Non Latching
Features:-
Termination Style:Quick Connect - 0.250" (6.3mm)
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:16.8 VAC
Must Release Voltage:3.6 VAC
Operate Time:30 ms
Release Time:30 ms
Operating Temperature:-50°C ~ 55°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
