T9AS5D12-22

T9AS5D12-22

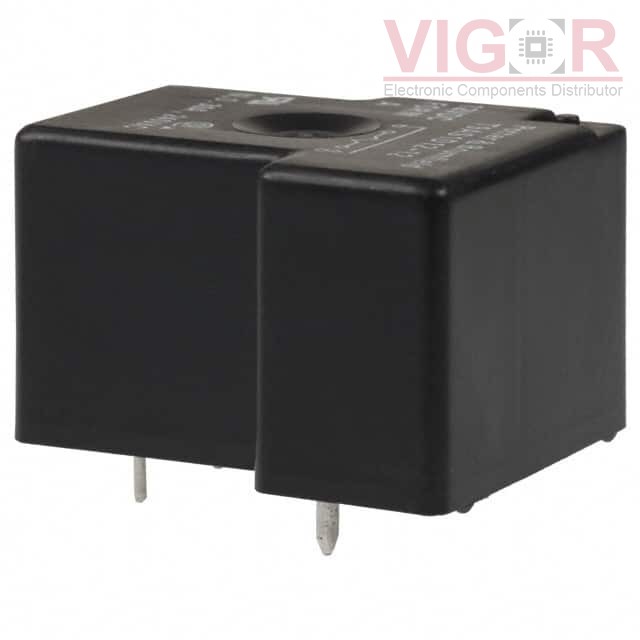

Image is for reference,
please contact us to get the real picture

Part No :

T9AS5D12-22

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPDT 20A 22V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
T9AS5D12-22 PDF
Availability
0 pieces
Unit Price
$3.76600

Current price of T9AS5D12-22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

T9AS5D12-22 Specifications
Type Description
Series:T9A
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:22VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:277VAC - Max
Coil Current:45.5 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:16.5 VDC
Must Release Voltage:2.2 VDC
Operate Time:15 ms
Release Time:15 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Cadmium Oxide (AgCdO)
Relay Type:General Purpose
