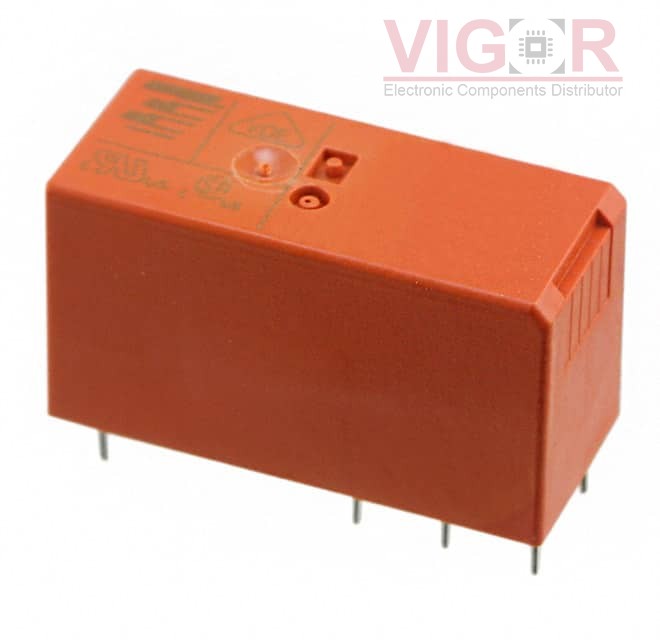

RT314A05

RT314A05

Image is for reference,
please contact us to get the real picture

Part No :

RT314A05

Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE SPDT 16A 5V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
RT314A05 PDF
Availability
3985 pieces
Unit Price
$6.29000

Current price of RT314A05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RT314A05 Specifications
Type Description
Series:RT1 Bistable, SCHRACK
Package:Tube
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:5VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):16 A
Switching Voltage:400VAC - Max
Coil Current:80.6 mA
Coil Type:Latching, Single Coil
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:Class F
Must Operate Voltage:3.5 VDC
Must Release Voltage:-
Operate Time:10 ms
Release Time:10 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Nickel (AgNi)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT JTV1AG-PA-24V

JTV1AG-PA-24V

RELAY GEN PURPOSE SPST 20A 24V
HOT 5-1608054-5

5-1608054-5

RELAY GEN PURPOSE DPDT 10A 120V

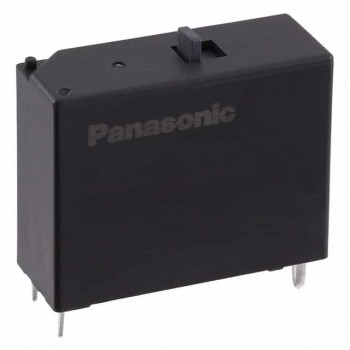

HOT ADJH22112
