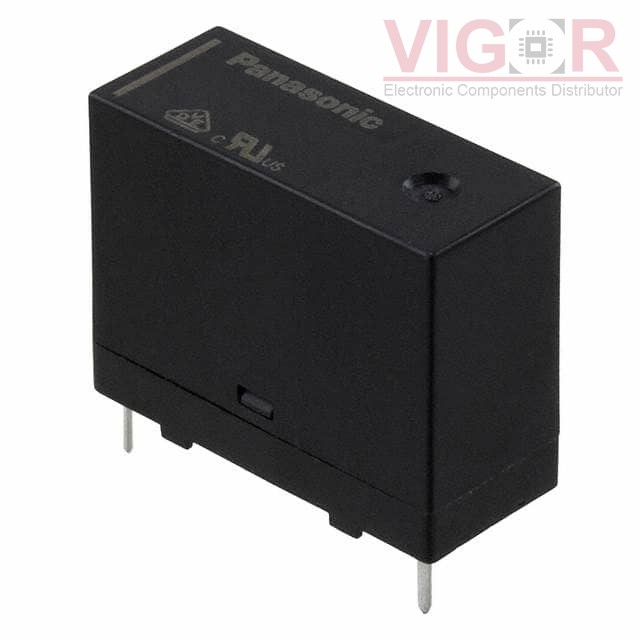

ADW1209HLW

ADW1209HLW

Image is for reference,
please contact us to get the real picture

Part No :

ADW1209HLW

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 16A 9V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
ADW1209HLW PDF
Availability
113 pieces
Unit Price
$5.89000

Current price of ADW1209HLW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADW1209HLW Specifications
Type Description
Series:DW-H
Package:Tray
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:9VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):16 A
Switching Voltage:277VAC - Max
Coil Current:44.4 mA
Coil Type:Latching, Dual Coil
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:Class F
Must Operate Voltage:7.2 VDC
Must Release Voltage:-
Operate Time:15 ms
Release Time:15 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT RJ1S-C-A24

RJ1S-C-A24

RELAY GEN PURPOSE SPDT 12A 24V
HOT G7J-3A1B-T-W1 AC24

G7J-3A1B-T-W1 AC24

RELAY GEN PURPOSE 4PST 25A 24V

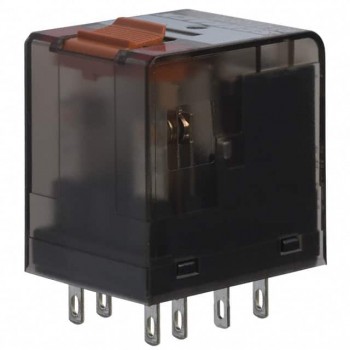

HOT PT370006
