JW1AHN-DC48V-F

JW1AHN-DC48V-F

Image is for reference,
please contact us to get the real picture

Part No :

JW1AHN-DC48V-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST-NO 5A 48V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
JW1AHN-DC48V-F PDF
Availability
0 pieces
Unit Price
$2.34000

Current price of JW1AHN-DC48V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JW1AHN-DC48V-F Specifications
Type Description
Series:JW
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:48VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):5 A
Switching Voltage:250VAC, 30VDC - Max
Coil Current:11 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:Class E
Must Operate Voltage:33.6 VDC
Must Release Voltage:4.8 VDC
Operate Time:15 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 60°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT APAN3118

APAN3118

RELAY GEN PURPOSE SPST 5A 18V
HOT 1-1414469-0

1-1414469-0

V23134J0052X461

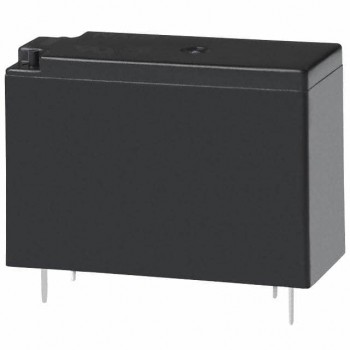

HOT JW1AFSN-B-DC18V-F
