JTN1G-TMP-F-DC6V

JTN1G-TMP-F-DC6V

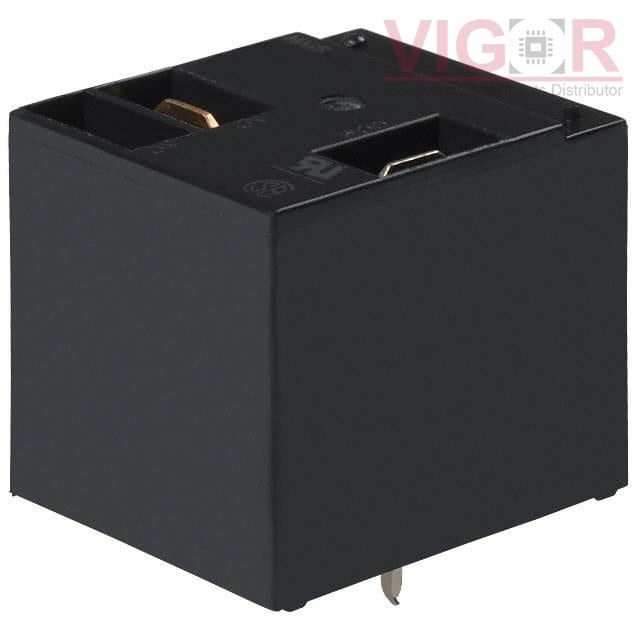

Image is for reference,
please contact us to get the real picture

Part No :

JTN1G-TMP-F-DC6V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPDT 20A 6V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
JTN1G-TMP-F-DC6V PDF
Availability
0 pieces
Unit Price
$3.51500

Current price of JTN1G-TMP-F-DC6V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JTN1G-TMP-F-DC6V Specifications
Type Description
Series:JT-N
Package:Bulk
Part Status:Not For New Designs
Mounting Type:Through Hole
Coil Voltage:6VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:277VAC - Max
Coil Current:133 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:-
Coil Insulation:Class F
Must Operate Voltage:4.5 VDC
Must Release Voltage:0.6 VDC
Operate Time:20 ms
Release Time:10 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
