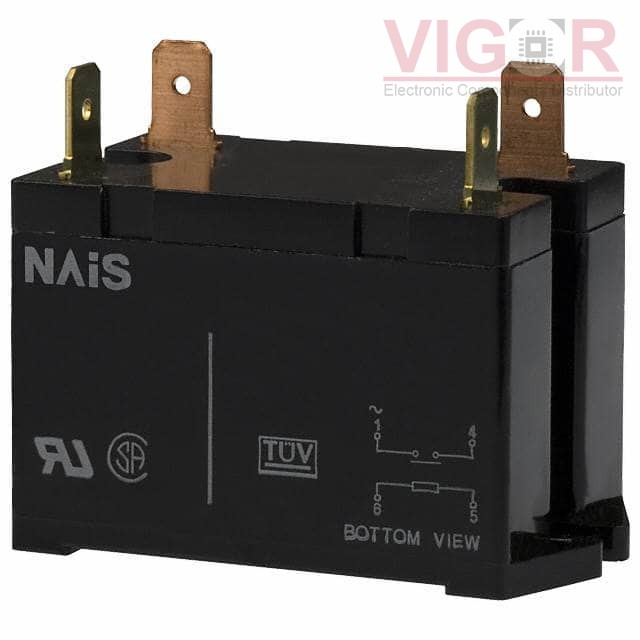

HE1AN-Q-AC24V

Image is for reference,
please contact us to get the real picture

Part No :: HE1AN-Q-AC24V

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 30A 24V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: HE1AN-Q-AC24V PDF

Availability: 6 pieces

Unit Price: ~~$22.98000~~

Current price of HE1AN-Q-AC24V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HE1AN-Q-AC24V Specifications

Type	Description
Series:	HE
Package:	Bulk
Part Status:	Active
Mounting Type:	Chassis Mount
Coil Voltage:	24VAC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	30 A
Switching Voltage:	277VAC, 30VDC - Max
Coil Current:	74 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Quick Connect - 0.250" (6.3mm)
Seal Rating:	-
Coil Insulation:	-
Must Operate Voltage:	16.8 VAC
Must Release Voltage:	3.6 VAC
Operate Time:	30 ms
Release Time:	30 ms
Operating Temperature:	-50°C ~ 55°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

NC2EBD-DC5V

RELAY GENERAL PURPOSE DPDT 5A 5V

HOT

2903310

RELAY GEN PURPOSE DPDT 8.5A 230V

HOT

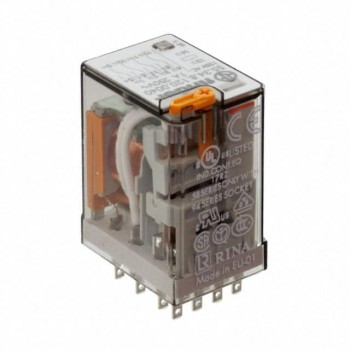

55.34.8.024.0050
