HEV2AN-P-DC12V

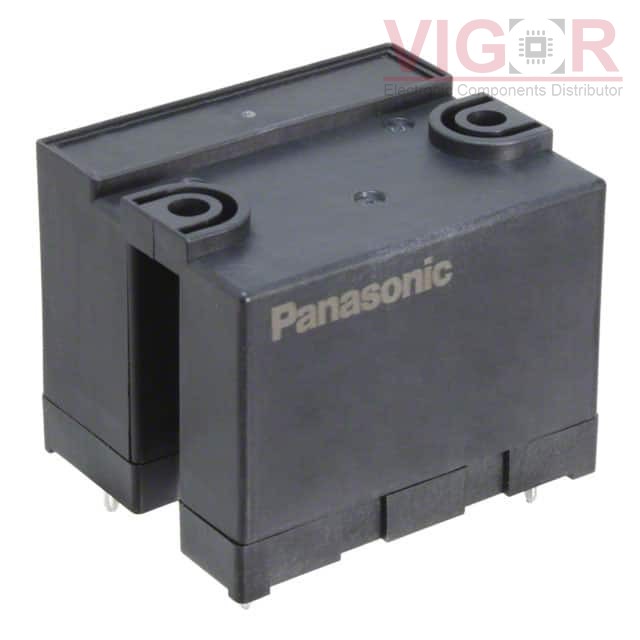

Image is for reference,
please contact us to get the real picture

Part No :: HEV2AN-P-DC12V

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE DPST 20A 12V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Aug 13 - Aug 17 2025

DataSheet: HEV2AN-P-DC12V PDF

Availability: 49 pieces

Unit Price: ~~$100.30000~~

Current price of HEV2AN-P-DC12V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HEV2AN-P-DC12V Specifications

Type	Description
Series:	HE-V
Package:	Tray
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	12VDC
Contact Form:	DPST-NO (2 Form A)
Contact Rating (Current):	20 A
Switching Voltage:	1000VDC - Max
Coil Current:	160 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	Class F
Must Operate Voltage:	8.4 VDC
Must Release Voltage:	0.6 VDC
Operate Time:	30 ms
Release Time:	10 ms
Operating Temperature:	-40°C ~ 55°C
Contact Material:	Silver Nickel (AgNi)
Relay Type:	General Purpose
