ADW1109HLW

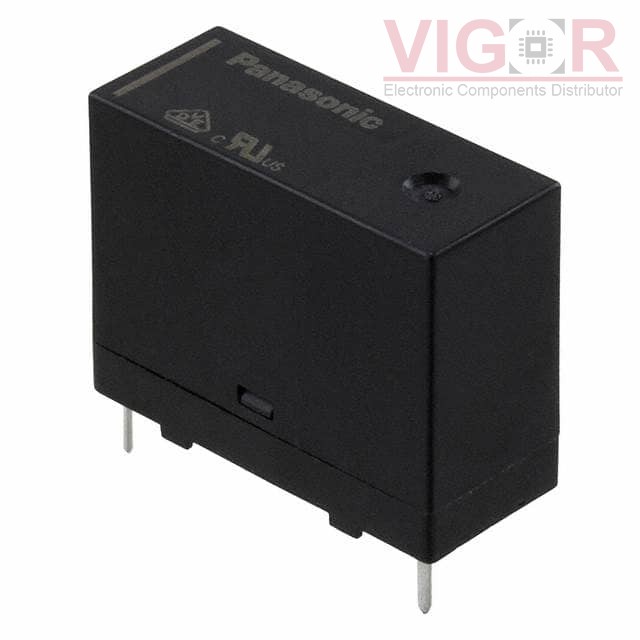

Image is for reference,
please contact us to get the real picture

Part No :: ADW1109HLW

Manufacturer: Panasonic

Description: RELAY GEN PURPOSE SPST 16A 9V

Catalog: Power Relays, Over 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Aug 14 - Aug 18 2025

DataSheet: ADW1109HLW PDF

Availability: 96 pieces

Unit Price: ~~$5.16000~~

Current price of ADW1109HLW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADW1109HLW Specifications

Type	Description
Series:	DW-H
Package:	Tray
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	9VDC
Contact Form:	SPST-NO (1 Form A)
Contact Rating (Current):	16 A
Switching Voltage:	277VAC - Max
Coil Current:	22.2 mA
Coil Type:	Latching, Single Coil
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Flux Protection
Coil Insulation:	Class F
Must Operate Voltage:	7.2 VDC
Must Release Voltage:	-
Operate Time:	15 ms
Release Time:	15 ms
Operating Temperature:	-40°C ~ 85°C
Contact Material:	Silver Tin Oxide (AgSnO)
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
