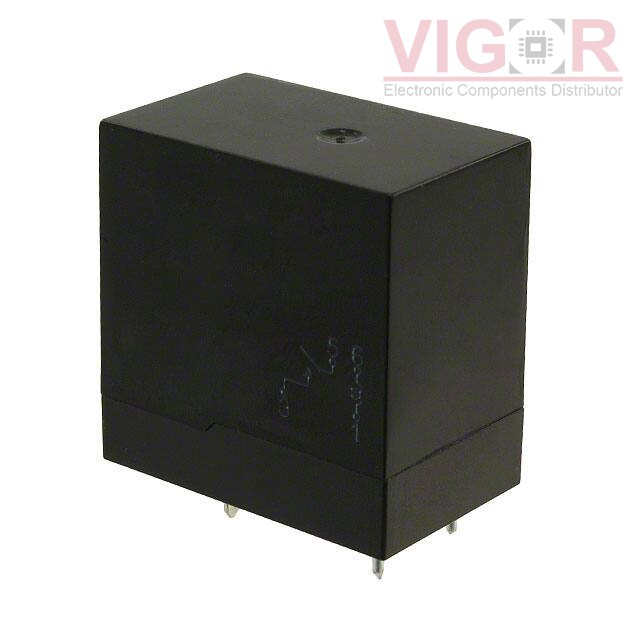

JC1AF-DC6V-F

JC1AF-DC6V-F

Image is for reference,
please contact us to get the real picture

Part No :

JC1AF-DC6V-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 15A 6V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
JC1AF-DC6V-F PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of JC1AF-DC6V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JC1AF-DC6V-F Specifications
Type Description
Series:JC
Package:Bulk
Part Status:Obsolete
Mounting Type:Through Hole
Coil Voltage:6VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):15 A
Switching Voltage:250VAC - Max
Coil Current:150 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:4.8 VDC
Must Release Voltage:0.6 VDC
Operate Time:30 ms
Release Time:10 ms
Operating Temperature:-50°C ~ 60°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
