HL1-L-DC12V-D-F

HL1-L-DC12V-D-F

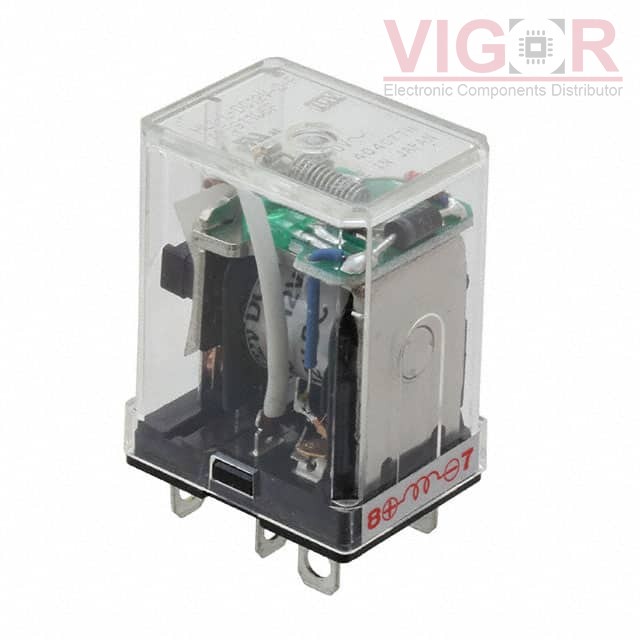

Image is for reference,
please contact us to get the real picture

Part No :

HL1-L-DC12V-D-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPDT 15A 12V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 27 - Aug 31 2025
DataSheet
HL1-L-DC12V-D-F PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HL1-L-DC12V-D-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HL1-L-DC12V-D-F Specifications
Type Description
Series:HL
Package:Bulk
Part Status:Obsolete
Mounting Type:Socketable
Coil Voltage:12VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):15 A
Switching Voltage:125VAC - Nom
Coil Current:75 mA
Coil Type:Non Latching
Features:Diode, Lighted Indicator
Termination Style:Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:9.6 VDC
Must Release Voltage:1.2 VDC
Operate Time:25 ms
Release Time:25 ms
Operating Temperature:-50°C ~ 70°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
