AHN12105

AHN12105

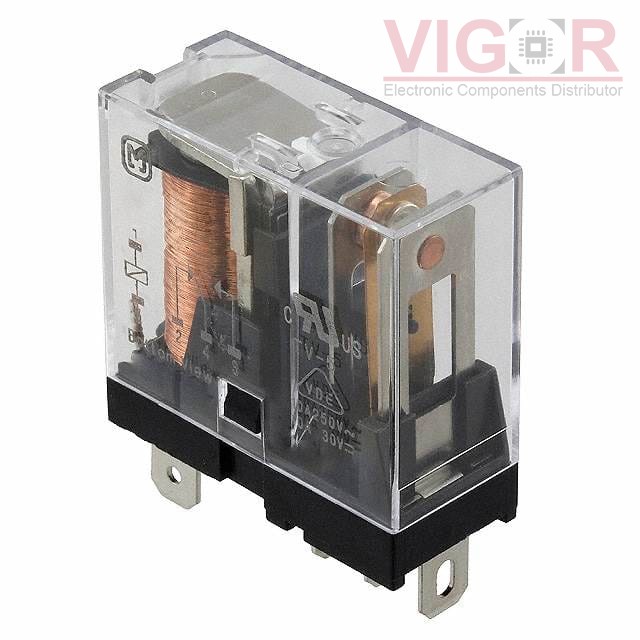

Image is for reference,
please contact us to get the real picture

Part No :

AHN12105

Manufacturer
Panasonic
Description
AHN RELAY 1 FORM C 5V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 27 - Aug 31 2025
DataSheet
AHN12105 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AHN12105 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AHN12105 Specifications
Type Description
Series:AHN
Package:Box
Part Status:Obsolete
Mounting Type:Socketable
Coil Voltage:5VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):16 A
Switching Voltage:250VAC, 30VDC - Max
Coil Current:106.4 mA
Coil Type:Non Latching
Features:Lighted Indicator
Termination Style:Plug In
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:3.5 VDC
Must Release Voltage:0.75 VDC
Operate Time:15 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 50°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
