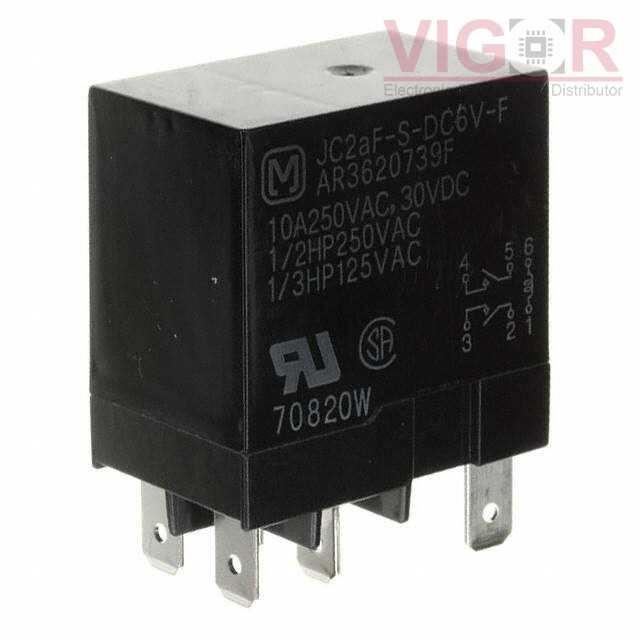

JC2AF-S-DC6V-F

JC2AF-S-DC6V-F

Image is for reference,
please contact us to get the real picture

Part No :

JC2AF-S-DC6V-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPST 10A 6V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
JC2AF-S-DC6V-F PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of JC2AF-S-DC6V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JC2AF-S-DC6V-F Specifications
Type Description
Series:JC
Package:Bulk
Part Status:Obsolete
Mounting Type:Socketable
Coil Voltage:6VDC
Contact Form:DPST-NO (2 Form A)
Contact Rating (Current):10 A
Switching Voltage:250VAC - Max
Coil Current:167 mA
Coil Type:Non Latching
Features:-
Termination Style:Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:4.8 VDC
Must Release Voltage:0.6 VDC
Operate Time:30 ms
Release Time:10 ms
Operating Temperature:-50°C ~ 60°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
