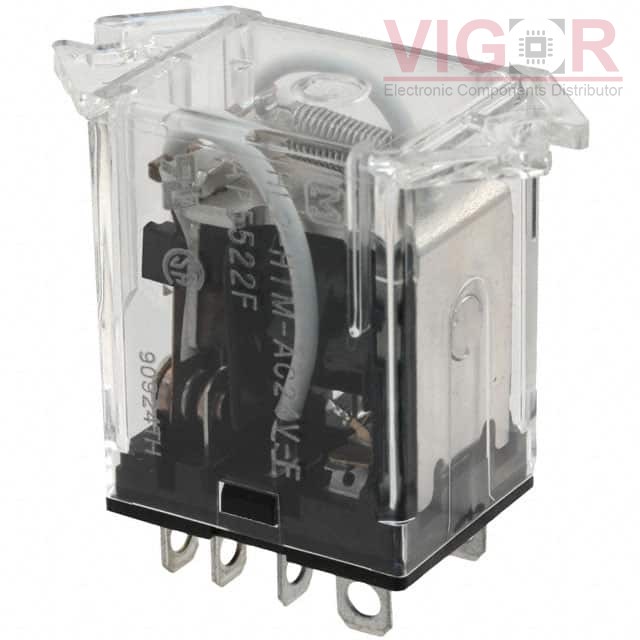

HL2-HTM-AC100V-F

HL2-HTM-AC100V-F

Image is for reference,
please contact us to get the real picture

Part No :

HL2-HTM-AC100V-F

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPDT 10A 100V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
HL2-HTM-AC100V-F PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HL2-HTM-AC100V-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HL2-HTM-AC100V-F Specifications
Type Description
Series:HL
Package:Bulk
Part Status:Obsolete
Mounting Type:Chassis Mount
Coil Voltage:100VAC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):10 A
Switching Voltage:125VAC - Nom
Coil Current:12 mA
Coil Type:Non Latching
Features:-
Termination Style:Quick Connect - 0.187" (4.7mm)
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:80 VAC
Must Release Voltage:30 VAC
Operate Time:25 ms
Release Time:25 ms
Operating Temperature:-50°C ~ 70°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 8660920000

8660920000

RELAY GEN PURPOSE SPST 6A 24V

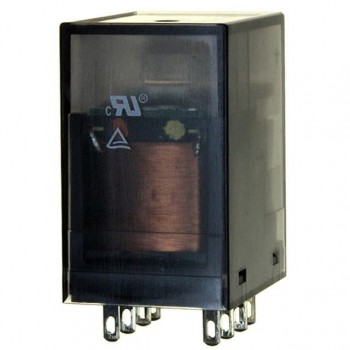

HOT PT52A012B

PT52A012B

RELAY GEN PURPOSE 4PDT 6A 12V

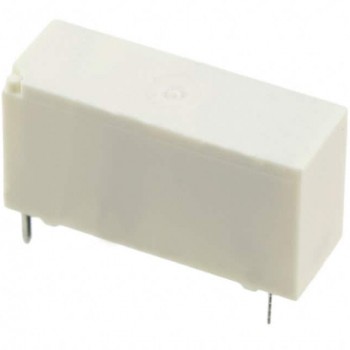

HOT 7-1393222-0
