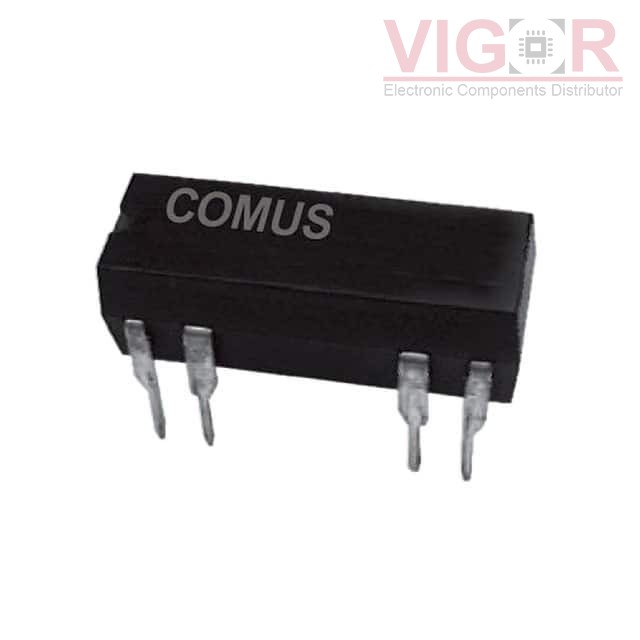

Type | Description |
---|---|
Series: | 3570 |
Package: | Tube |
Part Status: | Active |
Mounting Type: | Through Hole |
Coil Voltage: | 24VDC |
Contact Form: | SPST-NO (1 Form A) |
Contact Rating (Current): | 500 mA |
Switching Voltage: | 150VDC - Max |
Coil Current: | 11 mA |
Coil Type: | Non Latching |
Features: | - |
Termination Style: | PC Pin |
Seal Rating: | - |
Must Operate Voltage: | 18 VDC |
Must Release Voltage: | 2 VDC |
Operate Time: | 0.5 ms |
Release Time: | 0.5 ms |
Operating Temperature: | -20°C ~ 85°C |
Contact Material: | - |
