JMGACDD-26PW

JMGACDD-26PW

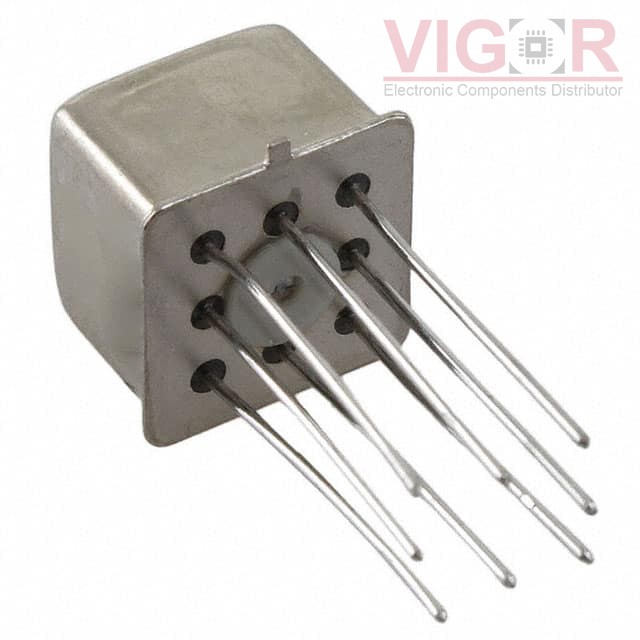

Image is for reference,
please contact us to get the real picture

Part No :

JMGACDD-26PW

Manufacturer
TE Connectivity Aerospace Defense and Marine
Description
RELAY GEN PURPOS DPDT 1A 26.5VDC
Catalog
Signal Relays, Up to 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
JMGACDD-26PW PDF
Availability
0 pieces
Unit Price
$75.25500

Current price of JMGACDD-26PW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JMGACDD-26PW Specifications
Type Description
Series:Military, MIL-R-39016/19, MGA, CII
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:26.5VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):1 A
Switching Voltage:28VDC - Nom
Coil Current:-
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Hermetically
Coil Insulation:-
Must Operate Voltage:15.2 VDC
Must Release Voltage:1.4 VDC
Operate Time:2 ms
Release Time:4 ms
Operating Temperature:-65°C ~ 125°C
Contact Material:-
Relay Type:General Purpose
