TQ2SA-9V-Z

TQ2SA-9V-Z

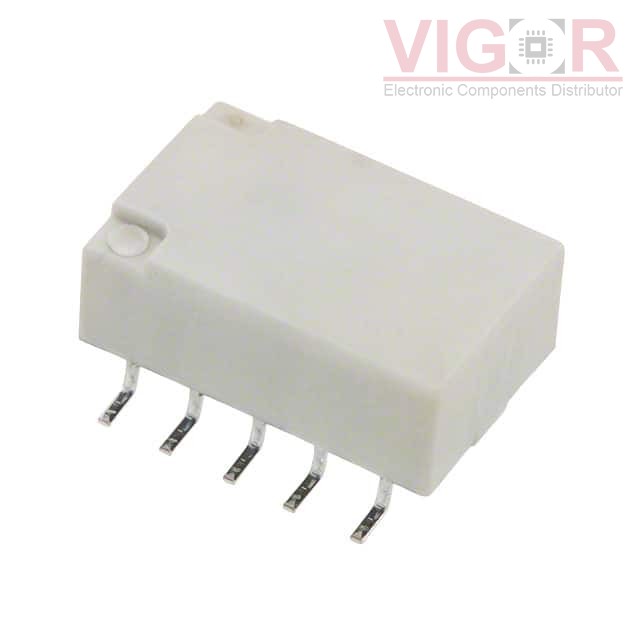

Image is for reference,
please contact us to get the real picture

Part No :

TQ2SA-9V-Z

Manufacturer
Panasonic
Description
RELAY TELECOM DPDT 2A 9VDC
Catalog
Signal Relays, Up to 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
TQ2SA-9V-Z PDF
Availability
4 pieces
Unit Price
$3.67000

Current price of TQ2SA-9V-Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TQ2SA-9V-Z Specifications
Type Description
Series:TQ-SMD
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Mounting Type:Surface Mount
Coil Voltage:9VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):2 A
Switching Voltage:125VAC, 220VDC - Max
Coil Current:15.5 mA
Coil Type:Non Latching
Features:-
Termination Style:Gull Wing
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:6.75 VDC
Must Release Voltage:0.9 VDC
Operate Time:4 ms
Release Time:4 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Nickel (AgNi), Gold (Au)
Relay Type:Telecom
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
