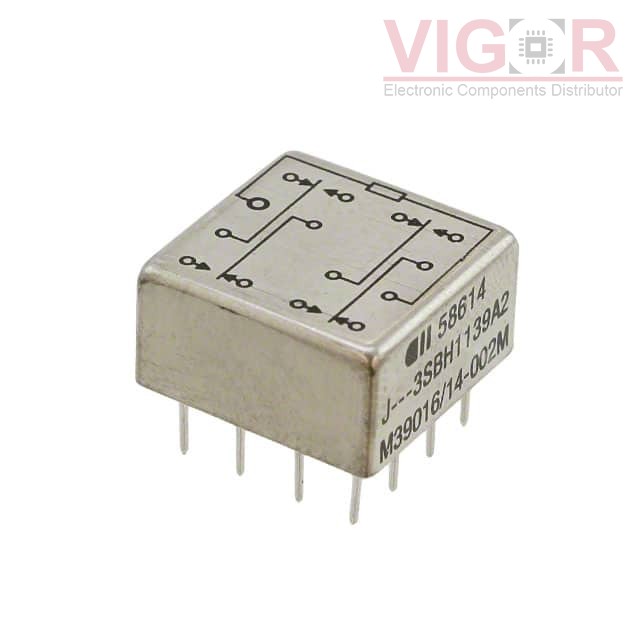

3SBH1139A2

3SBH1139A2

Image is for reference,
please contact us to get the real picture

Part No :

3SBH1139A2

Manufacturer
TE Connectivity Aerospace Defense and Marine
Description
RELAY GEN PURPOS 4PDT 2A 26.5VDC
Catalog
Signal Relays, Up to 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
3SBH1139A2 PDF
Availability
5 pieces
Unit Price
$552.71000

Current price of 3SBH1139A2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3SBH1139A2 Specifications
Type Description
Series:Military, MIL-R-39016/14, 3SBH, CII
Package:Bulk
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:26.5VDC
Contact Form:4PDT (4 Form C)
Contact Rating (Current):2 A
Switching Voltage:28VDC - Nom
Coil Current:36.8 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Hermetically
Coil Insulation:-
Must Operate Voltage:13.5 VDC
Must Release Voltage:1.5 VDC
Operate Time:4 ms
Release Time:4 ms
Operating Temperature:-65°C ~ 125°C
Contact Material:-
Relay Type:General Purpose
