AGQ20T09

AGQ20T09

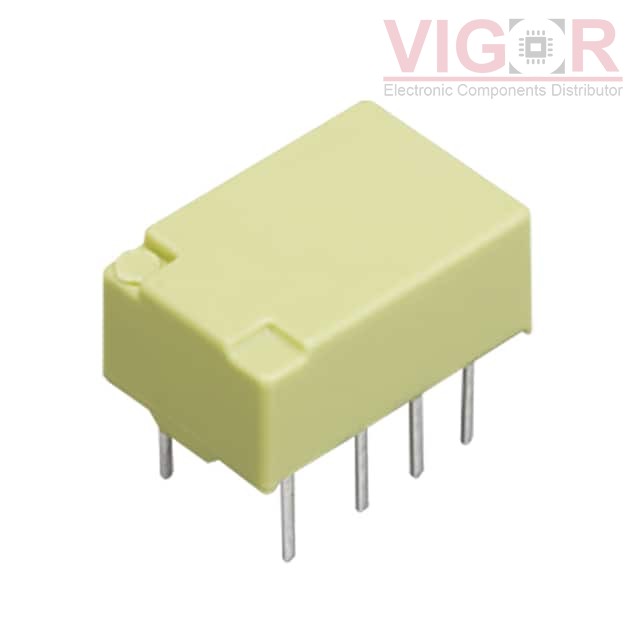

Image is for reference,
please contact us to get the real picture

Part No :

AGQ20T09

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPDT 2A 9VDC
Catalog
Signal Relays, Up to 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
AGQ20T09 PDF
Availability
441 pieces
Unit Price
$3.12000

Current price of AGQ20T09 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AGQ20T09 Specifications
Type Description
Series:AGQ TH
Package:Tube
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:9VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):2 A
Switching Voltage:125VAC, 110VDC - Max
Coil Current:15.5 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:-
Coil Insulation:-
Must Operate Voltage:6.75 VDC
Must Release Voltage:0.9 VDC
Operate Time:4 ms
Release Time:4 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Nickel (AgNi), Gold (Au)
Relay Type:General Purpose
