AZ822-2C-12DSE

AZ822-2C-12DSE

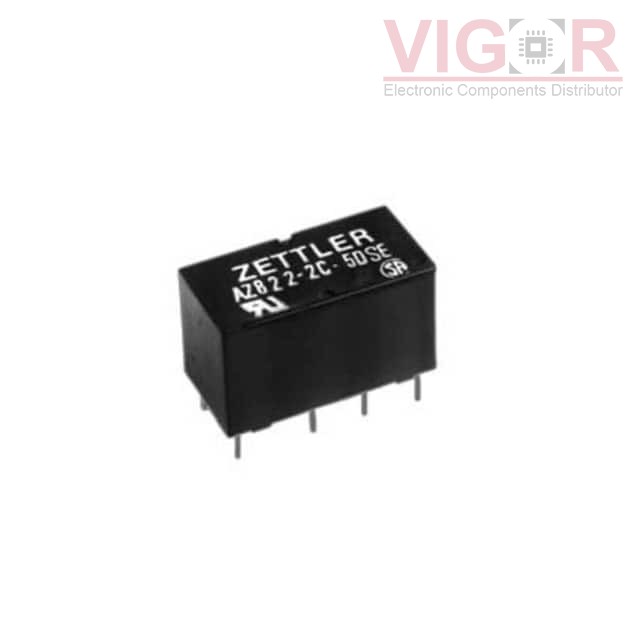

Image is for reference,
please contact us to get the real picture

Part No :

AZ822-2C-12DSE

Manufacturer
American Zettler
Description
SUBMINIATURE DIP RELAY
Catalog
Signal Relays, Up to 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
AZ822-2C-12DSE PDF
Availability
2 pieces
Unit Price
$0.81000

Current price of AZ822-2C-12DSE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AZ822-2C-12DSE Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:12VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):2 A
Switching Voltage:250VAC, 220VDC - Max
Coil Current:12.5 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Fully
Coil Insulation:-
Must Operate Voltage:8.4 VDC
Must Release Voltage:0.6 VDC
Operate Time:5 ms
Release Time:2 ms
Operating Temperature:-55°C ~ 90°C
Contact Material:Silver Palladium (AgPd), Gold (Au)
Relay Type:General Purpose
