3SBH1230A2

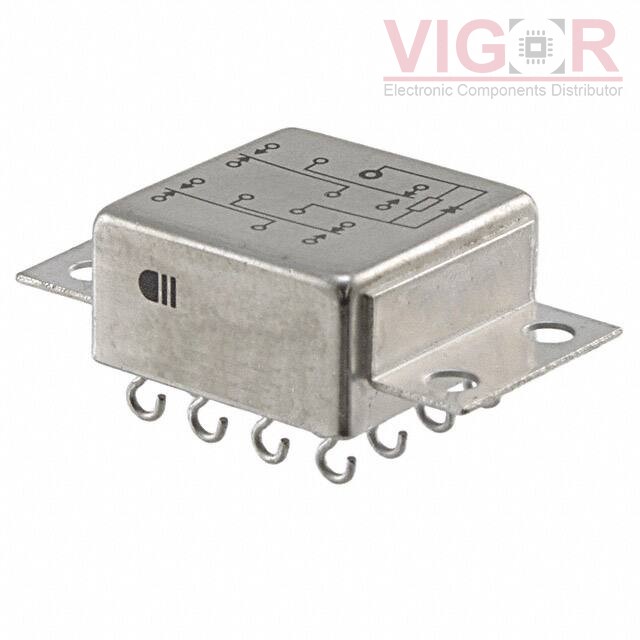

Image is for reference,
please contact us to get the real picture

Part No :: 3SBH1230A2

Manufacturer: TE Connectivity Aerospace Defense and Marine

Description: RELAY GEN PURPOS 4PDT 2A 26.5VDC

Catalog: Signal Relays, Up to 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: 3SBH1230A2 PDF

Availability: 0 pieces

Unit Price: ~~$591.11100~~

Current price of 3SBH1230A2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3SBH1230A2 Specifications

Type	Description
Series:	Military, MIL-R-39016/53, 3SBH, CII
Package:	Bulk
Part Status:	Active
Mounting Type:	Chassis Mount
Coil Voltage:	26.5VDC
Contact Form:	4PDT (4 Form C)
Contact Rating (Current):	2 A
Switching Voltage:	28VDC - Nom
Coil Current:	36.8 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	Solder Hook
Seal Rating:	Sealed - Hermetically
Coil Insulation:	-
Must Operate Voltage:	13.5 VDC
Must Release Voltage:	1.5 VDC
Operate Time:	4 ms
Release Time:	6 ms
Operating Temperature:	-65°C ~ 125°C
Contact Material:	-
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
