TXD2SA-3V-4-X

TXD2SA-3V-4-X

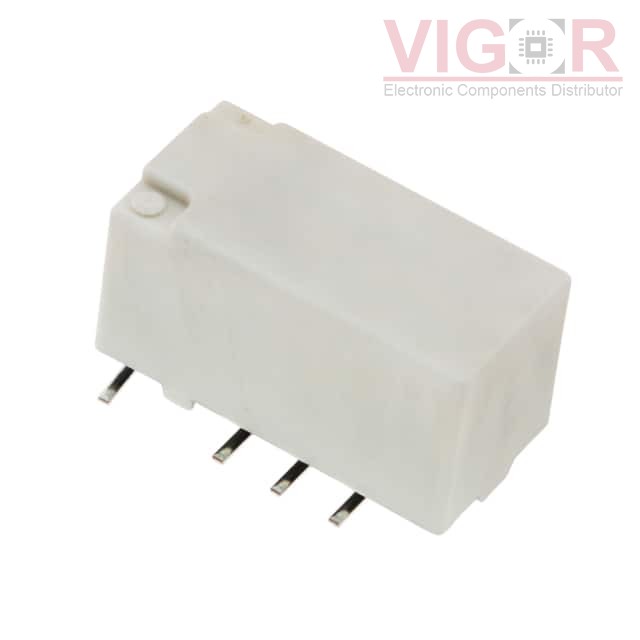

Image is for reference,
please contact us to get the real picture

Part No :

TXD2SA-3V-4-X

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE DPDT 10MA 3VDC
Catalog
Signal Relays, Up to 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
TXD2SA-3V-4-X PDF
Availability
0 pieces
Unit Price
$5.37000

Current price of TXD2SA-3V-4-X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TXD2SA-3V-4-X Specifications
Type Description
Series:TX-D
Package:Tape & Reel (TR)
Part Status:Active
Mounting Type:Surface Mount
Coil Voltage:3VDC
Contact Form:DPDT (2 Form C)
Contact Rating (Current):10 mA
Switching Voltage:10VDC - Max
Coil Current:93.5 mA
Coil Type:Non Latching
Features:-
Termination Style:Gull Wing
Seal Rating:Sealed - Fully
Coil Insulation:-
Must Operate Voltage:2.25 VDC
Must Release Voltage:0.3 VDC
Operate Time:4 ms
Release Time:4 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Palladium (AgPd), Gold (Au)
Relay Type:General Purpose
