JMAWD-26XP

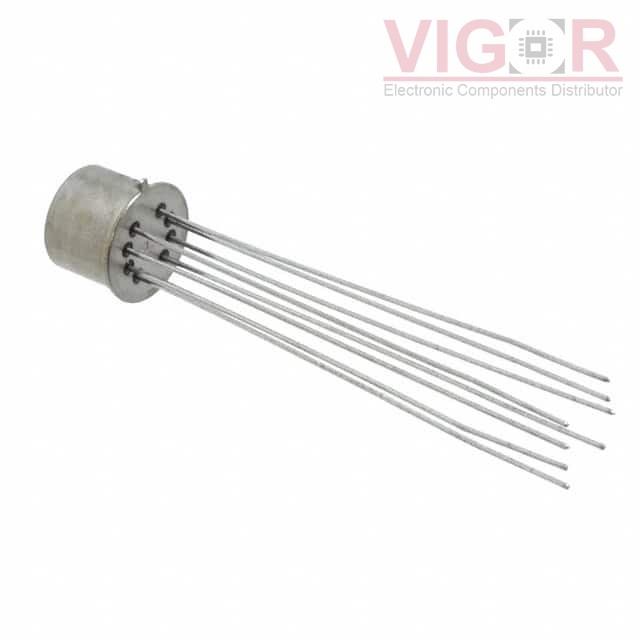

Image is for reference,
please contact us to get the real picture

Part No :: JMAWD-26XP

Manufacturer: TE Connectivity Aerospace Defense and Marine

Description: RELAY GEN PURPOS DPDT 1A 26.5VDC

Catalog: Signal Relays, Up to 2 Amps

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: JMAWD-26XP PDF

Availability: 0 pieces

Unit Price: ~~$66.12800~~

Current price of JMAWD-26XP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JMAWD-26XP Specifications

Type	Description
Series:	Military, MIL-R-39016/15, MA, CII
Package:	Bulk
Part Status:	Active
Mounting Type:	Through Hole
Coil Voltage:	26.5VDC
Contact Form:	DPDT (2 Form C)
Contact Rating (Current):	1 A
Switching Voltage:	28VDC - Nom
Coil Current:	17 mA
Coil Type:	Non Latching
Features:	-
Termination Style:	PC Pin
Seal Rating:	Sealed - Hermetically
Coil Insulation:	-
Must Operate Voltage:	14.2 VDC
Must Release Voltage:	1.37 VDC
Operate Time:	2 ms
Release Time:	4 ms
Operating Temperature:	-65°C ~ 125°C
Contact Material:	-
Relay Type:	General Purpose

Please confirm the specifications of the products when ordering.
