TLP3109A(TP,F

TLP3109A(TP,F

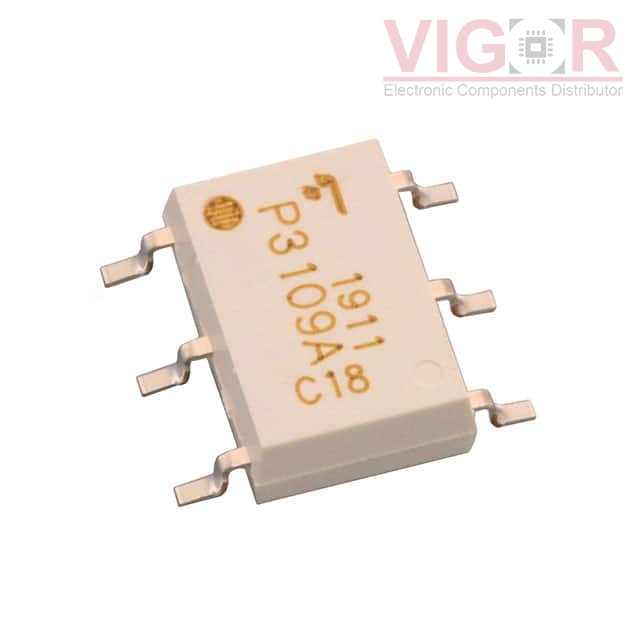

Image is for reference,
please contact us to get the real picture

Part No :

TLP3109A(TP,F

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
PHOTORELAY; 2.54SOP6 PACKAGE
Catalog
Solid State Relays
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
TLP3109A(TP,F PDF
Availability
0 pieces
Unit Price
$3.94000

Current price of TLP3109A(TP,F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLP3109A(TP,F Specifications
Type Description
Series:TLP3109A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Mounting Type:Surface Mount
Circuit:SPST-NO (1 Form A)
Output Type:AC, DC
Voltage - Input:1.65VDC
Voltage - Load:0 V ~ 100.0 V
Load Current:3 A
On-State Resistance (Max):65 mOhms
Termination Style:Gull Wing
Package / Case:6-SOP (0.173", 4.40mm)
Supplier Device Package:6-SOP (2.54mm)
