Type | Description |
---|---|
Series: | CRA06 |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Obsolete |
Circuit Type: | Isolated |
Resistance (Ohms): | 9.1k |
Tolerance: | ±5% |
Number of Resistors: | 4 |
Resistor Matching Ratio: | - |
Resistor-Ratio-Drift: | - |
Number of Pins: | 8 |
Power Per Element: | 62.5mW |
Temperature Coefficient: | ±200ppm/°C |
Operating Temperature: | -55°C ~ 155°C |
Applications: | - |
Mounting Type: | Surface Mount |
Package / Case: | 1206 (3216 Metric), Convex, Long Side Terminals |
Supplier Device Package: | - |
Size / Dimension: | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
Height - Seated (Max): | 0.024" (0.60mm) |

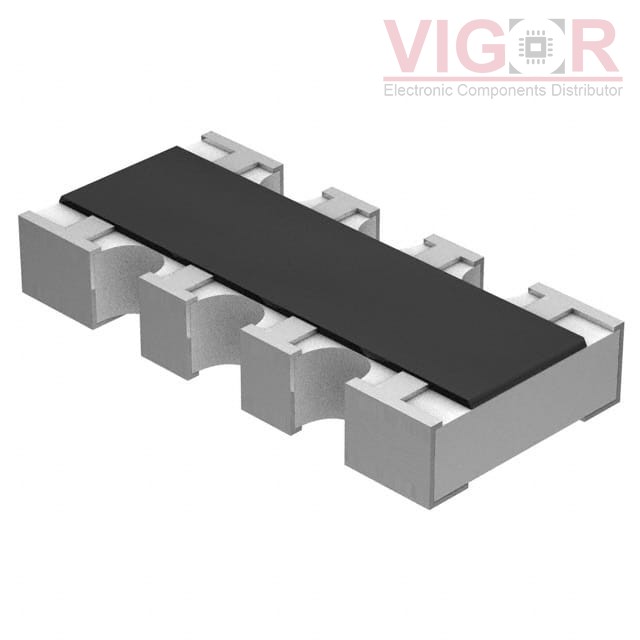

RES ARRAY 4 RES 9.1K OHM 1206
