4309R-101-220

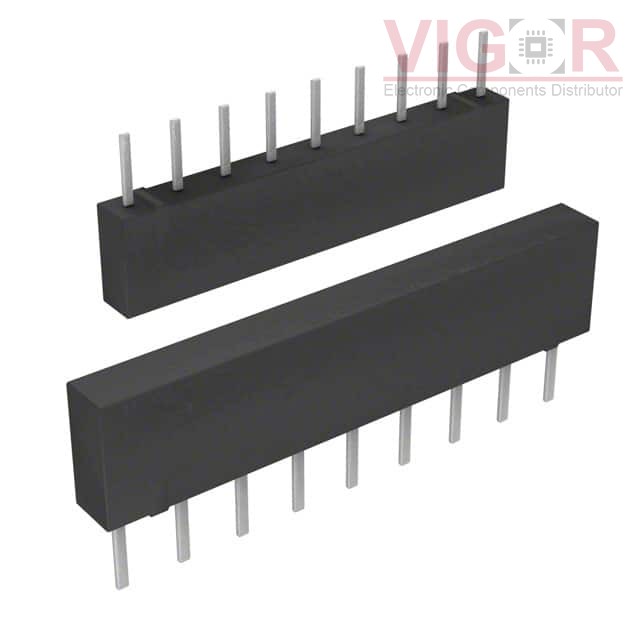

Image is for reference,
please contact us to get the real picture

Part No :: 4309R-101-220

Manufacturer: J.W. Miller / Bourns

Description: RES ARRAY 8 RES 22 OHM 9SIP

Catalog: Arrays/Networks Resistors

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: 4309R-101-220 PDF

Availability: 0 pieces

Unit Price: ~~$0.47880~~

Current price of 4309R-101-220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

4309R-101-220 Specifications

Type	Description
Series:	4300R
Package:	Bulk
Part Status:	Active
Circuit Type:	Bussed
Resistance (Ohms):	22
Tolerance:	±1Ohm
Number of Resistors:	8
Resistor Matching Ratio:	-
Resistor-Ratio-Drift:	50ppm/°C
Number of Pins:	9
Power Per Element:	200mW
Temperature Coefficient:	±250ppm/°C
Operating Temperature:	-55°C ~ 125°C
Applications:	-
Mounting Type:	Through Hole
Package / Case:	9-SIP
Supplier Device Package:	9-SIP
Size / Dimension:	0.884" L x 0.085" W (22.45mm x 2.16mm)
Height - Seated (Max):	0.195" (4.95mm)

Please confirm the specifications of the products when ordering.
