4820P-3-271/471

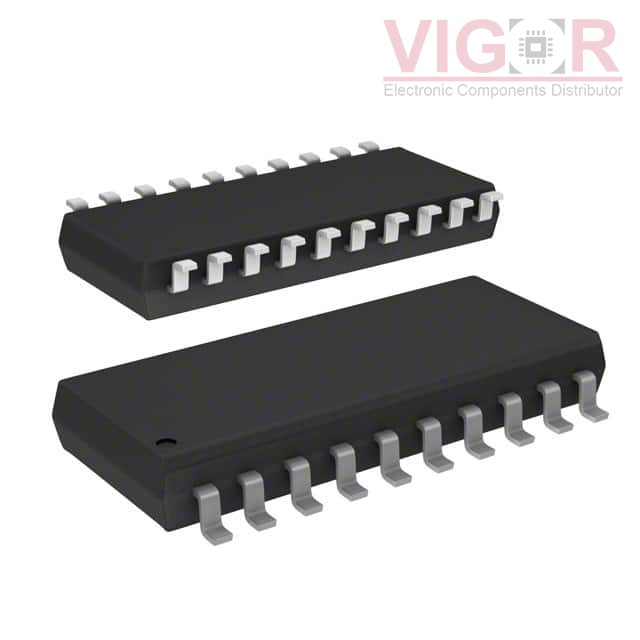

Image is for reference,
please contact us to get the real picture

Part No :: 4820P-3-271/471

Manufacturer: J.W. Miller / Bourns

Description: RES NTWRK 36 RES MULT OHM 20SOIC

Catalog: Arrays/Networks Resistors

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: 4820P-3-271/471 PDF

Availability: 0 pieces

Unit Price: ~~$0.82460~~

Current price of 4820P-3-271/471 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

4820P-3-271/471 Specifications

Type	Description
Series:	4800P
Package:	Tape & Reel (TR)
Part Status:	Active
Circuit Type:	Dual Terminator
Resistance (Ohms):	270, 470
Tolerance:	±2%
Number of Resistors:	36
Resistor Matching Ratio:	-
Resistor-Ratio-Drift:	-
Number of Pins:	20
Power Per Element:	80mW
Temperature Coefficient:	±100ppm/°C
Operating Temperature:	-55°C ~ 125°C
Applications:	Automotive AEC-Q200
Mounting Type:	Surface Mount
Package / Case:	20-SOIC (0.220", 5.59mm Width)
Supplier Device Package:	20-SOM
Size / Dimension:	0.540" L x 0.220" W (13.72mm x 5.59mm)
Height - Seated (Max):	0.094" (2.40mm)

Please confirm the specifications of the products when ordering.
