TNPW0603470RDEEA

TNPW0603470RDEEA

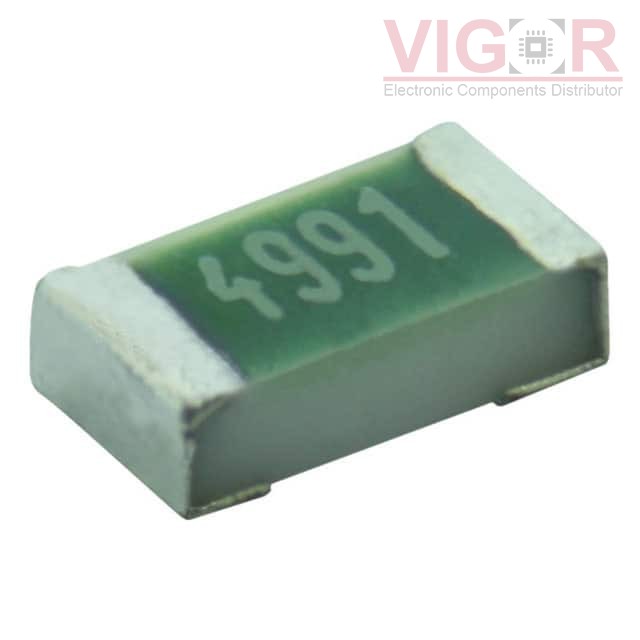

Image is for reference,
please contact us to get the real picture

Part No :

TNPW0603470RDEEA

Manufacturer
Vishay / Dale
Description
RES 470 OHM 0.5% 1/8W 0603
Catalog
Chip Resistors-Surface Mount
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
TNPW0603470RDEEA PDF
Availability
0 pieces
Unit Price
$0.04988

Current price of TNPW0603470RDEEA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TNPW0603470RDEEA Specifications
Type Description
Series:TNPW e3
Package:Tape & Reel (TR)
Part Status:Active
Resistance:470 Ohms
Tolerance:±0.5%
Power (Watts):0.125W, 1/8W
Composition:Thin Film
Features:Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:±25ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603
Ratings:AEC-Q200
Size / Dimension:0.061" L x 0.033" W (1.55mm x 0.85mm)
Height - Seated (Max):0.022" (0.55mm)
Number of Terminations:2
Failure Rate:-
