CSR0603JKR220

CSR0603JKR220

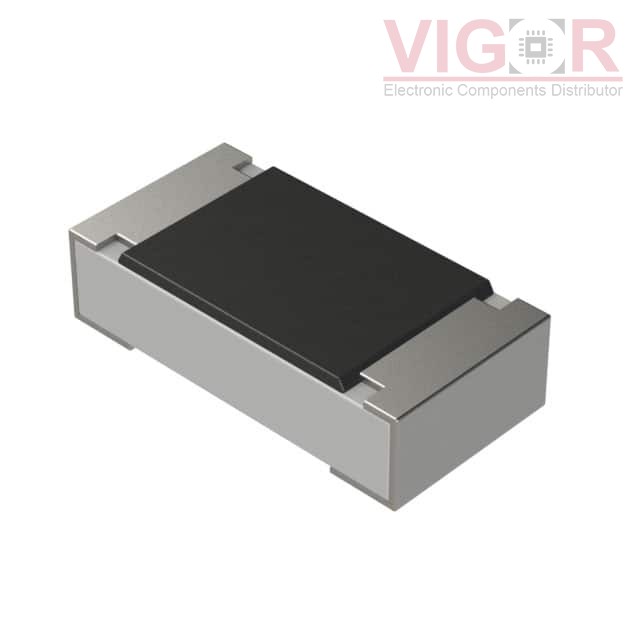

Image is for reference,
please contact us to get the real picture

Part No :

CSR0603JKR220

Manufacturer
Stackpole Electronics, Inc.
Description
RES 0.22 OHM 5% 1/8W 0603
Catalog
Chip Resistors-Surface Mount
Shipped from
HK warehouse
Expected Shipping Date
Aug 12 - Aug 16 2025
DataSheet
CSR0603JKR220 PDF
Availability
0 pieces
Unit Price
$0.03600

Current price of CSR0603JKR220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSR0603JKR220 Specifications
Type Description
Series:CSR
Package:Tape & Reel (TR)
Part Status:Active
Resistance:220 mOhms
Tolerance:±5%
Power (Watts):0.125W, 1/8W
Composition:Thick Film
Features:Current Sense
Temperature Coefficient:±300ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603
Ratings:-
Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max):0.022" (0.55mm)
Number of Terminations:2
Failure Rate:-
