TNPW0603316RFHEA

TNPW0603316RFHEA

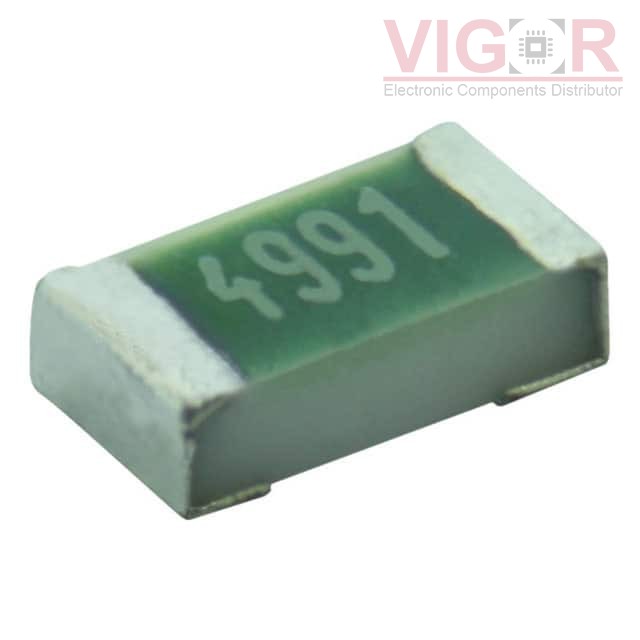

Image is for reference,
please contact us to get the real picture

Part No :

TNPW0603316RFHEA

Manufacturer
Vishay / Dale
Description
RES 316 OHM 1% 1/8W 0603
Catalog
Chip Resistors-Surface Mount
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
TNPW0603316RFHEA PDF
Availability
0 pieces
Unit Price
$0.04988

Current price of TNPW0603316RFHEA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TNPW0603316RFHEA Specifications
Type Description
Series:TNPW e3
Package:Tape & Reel (TR)
Part Status:Active
Resistance:316 Ohms
Tolerance:±1%
Power (Watts):0.125W, 1/8W
Composition:Thin Film
Features:Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:±50ppm/°C
Operating Temperature:-55°C ~ 155°C
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603
Ratings:AEC-Q200
Size / Dimension:0.061" L x 0.033" W (1.55mm x 0.85mm)
Height - Seated (Max):0.022" (0.55mm)
Number of Terminations:2
Failure Rate:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
