TNPW12063K24FHEA

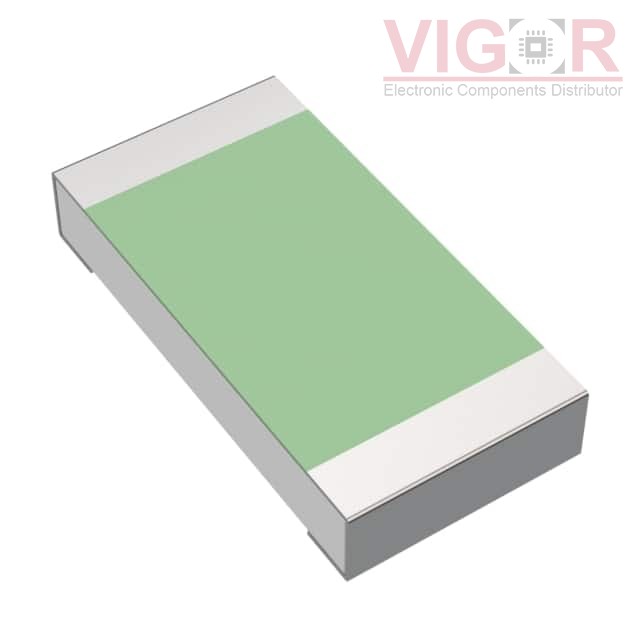

Image is for reference,
please contact us to get the real picture

Part No :: TNPW12063K24FHEA

Manufacturer: Vishay / Dale

Description: RES 3.24K OHM 1% 2/5W 1206

Catalog: Chip Resistors-Surface Mount

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: TNPW12063K24FHEA PDF

Availability: 0 pieces

Unit Price: ~~$0.19950~~

Current price of TNPW12063K24FHEA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TNPW12063K24FHEA Specifications

Type	Description
Series:	TNPW e3
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	3.24 kOhms
Tolerance:	±1%
Power (Watts):	0.4W, 2/5W
Composition:	Thin Film
Features:	Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient:	±50ppm/°C
Operating Temperature:	-55°C ~ 155°C
Package / Case:	1206 (3216 Metric)
Supplier Device Package:	1206
Ratings:	AEC-Q200
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	0.026" (0.65mm)
Number of Terminations:	2
Failure Rate:	-
