ADL9005ACPZN-R7

ADL9005ACPZN-R7

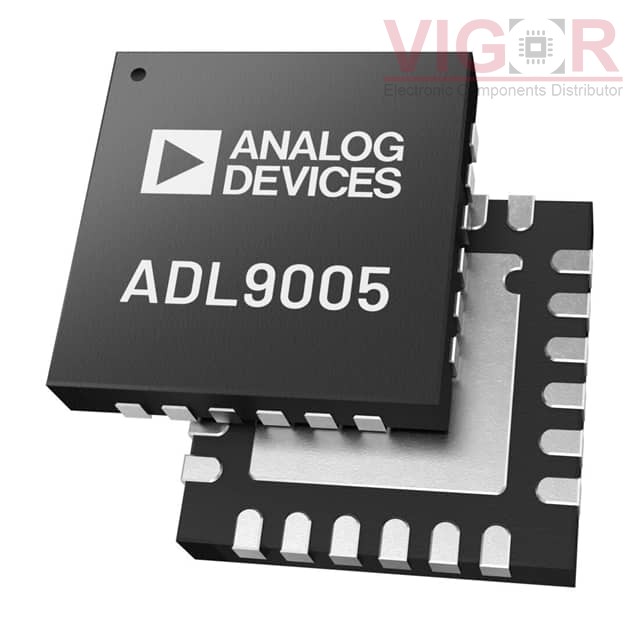

Image is for reference,
please contact us to get the real picture

Part No :

ADL9005ACPZN-R7

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
DC TO 28 GHZ DISTRIBUTED LNA
Catalog
RF Amplifiers
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
ADL9005ACPZN-R7 PDF
Availability
0 pieces
Unit Price
$169.81500

Current price of ADL9005ACPZN-R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADL9005ACPZN-R7 Specifications
Type Description
Series:ADL
Package:Tape & Reel (TR)
Part Status:Active
Frequency:10MHz ~ 26.5GHz
P1dB:13.5dBm
Gain:19dB
Noise Figure:4dB
RF Type:General Purpose
Voltage - Supply:3V ~ 6V
Current - Supply:80mA
Test Frequency:10MHz ~ 20GHz
Mounting Type:Surface Mount
Package / Case:24-WFQFN Exposed Pad, CSP
Supplier Device Package:24-LFCSP-WQ (4x4)
