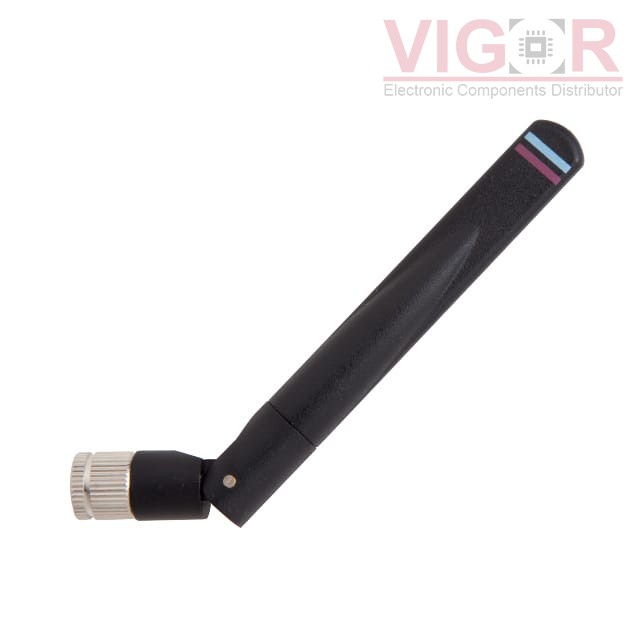

ANT-DB1-RAF-SMA

ANT-DB1-RAF-SMA

Image is for reference,
please contact us to get the real picture

Part No :

ANT-DB1-RAF-SMA

Manufacturer
Linx Technologies
Description
RF ANT 2.45GHZ/5.3GHZ WHIP TILT
Catalog
RF Antennas
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ANT-DB1-RAF-SMA PDF
Availability
0 pieces
Unit Price
$13.14000

Current price of ANT-DB1-RAF-SMA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ANT-DB1-RAF-SMA Specifications
Type Description
Series:RAF
Package:Bulk
Part Status:Active
RF Family/Standard:802.15.4, Bluetooth, WiFi
Frequency Group:UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band):2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz
Frequency Range:2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.825GHz
Antenna Type:Whip, Tilt
Number of Bands:2
VSWR:1.9
Return Loss:-
Gain:2.5dBi, 4.6dBi
Power - Max:-
Features:-
Termination:SMA Male
Ingress Protection:-
Mounting Type:Connector Mount
Height (Max):4.130" (104.90mm)
Applications:Bluetooth, Thread, Wi-Fi, Zigbee™
