ANT3216LL15R1575A

ANT3216LL15R1575A

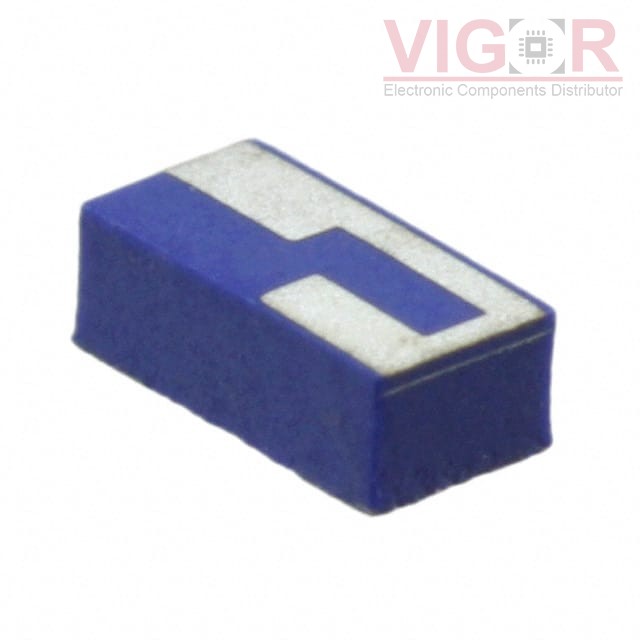

Image is for reference,
please contact us to get the real picture

Part No :

ANT3216LL15R1575A

Manufacturer
Yageo
Description
RF ANT 1.575GHZ CHIP SOLDER SMD
Catalog
RF Antennas
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
ANT3216LL15R1575A PDF
Availability
2720 pieces
Unit Price
$0.86000

Current price of ANT3216LL15R1575A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ANT3216LL15R1575A Specifications
Type Description
Series:3216
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
RF Family/Standard:Navigation
Frequency Group:UHF (1GHz ~ 2GHz)
Frequency (Center/Band):1.575GHz
Frequency Range:1.55GHz ~ 1.6GHz
Antenna Type:Chip
Number of Bands:1
VSWR:-
Return Loss:-10dB
Gain:2.01dBi
Power - Max:1 W
Features:-
Termination:Solder
Ingress Protection:-
Mounting Type:Surface Mount
Height (Max):0.047" (1.20mm)
Applications:GPS
