HMC696LP4

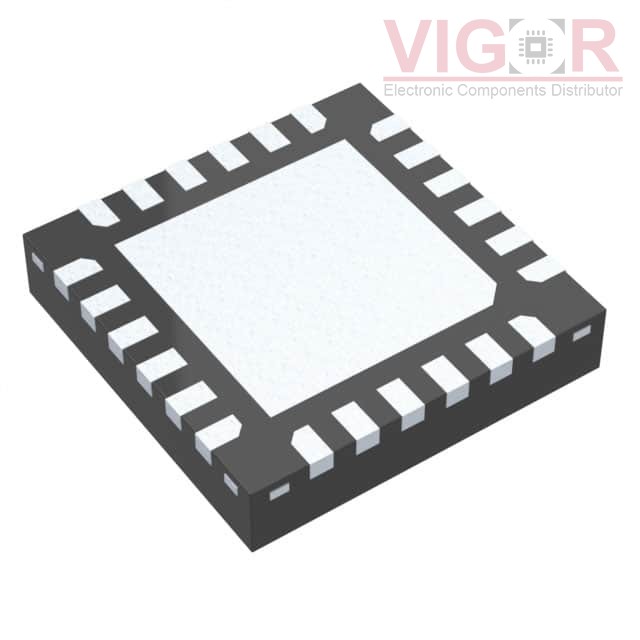

Image is for reference,
please contact us to get the real picture

Part No :: HMC696LP4

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: RF MODULATOR 20MHZ-2.7GHZ 24QFN

Catalog: RF Modulators

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: HMC696LP4 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of HMC696LP4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HMC696LP4 Specifications

Type	Description
Series:	-
Package:	Strip
Part Status:	Obsolete
Function:	Modulator
LO Frequency:	20MHz ~ 2.7GHz
RF Frequency:	20MHz ~ 2.7GHz
P1dB:	7dBm
Noise Floor:	-162dBm/Hz
Output Power:	-1dBm
Current - Supply:	160 mA
Voltage - Supply:	4.5V ~ 5.5V
Test Frequency:	-
Package / Case:	24-VFQFN Exposed Pad

Please confirm the specifications of the products when ordering.
