DPX204752DT-4028A1

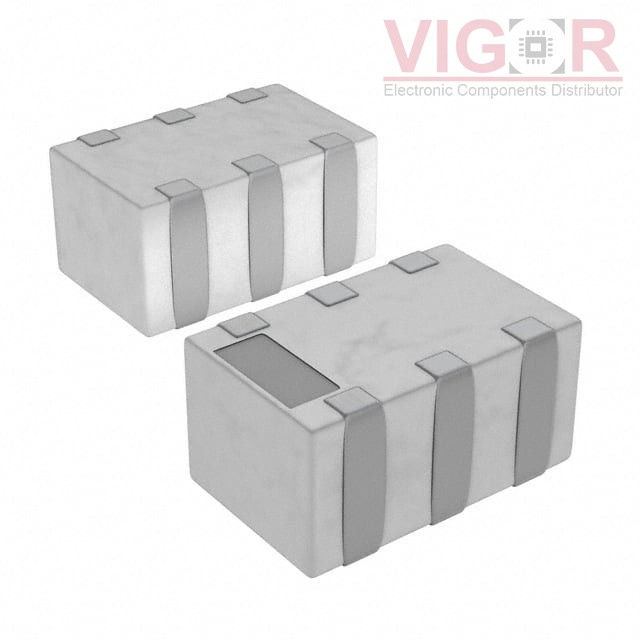

Image is for reference,
please contact us to get the real picture

Part No :: DPX204752DT-4028A1

Manufacturer: TDK Corporation

Description: RF DIPLEXER 2.4GHZ/3.965GHZ 0805

Catalog: RF Multiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: DPX204752DT-4028A1 PDF

Availability: 0 pieces

Unit Price: ~~$0.37500~~

Current price of DPX204752DT-4028A1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPX204752DT-4028A1 Specifications

Type	Description
Series:	DPX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	Diplexer
Frequency Bands (Low / High):	2.3GHz ~ 2.5GHz / 3.17GHz ~ 4.76GHz
Low Band Attenuation (min / max dB):	20.00dB / -
High Band Attenuation (min / max dB):	20.00dB / -
Return Loss (Low Band / High Band):	7.0dB / 10.0dB
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric), 6 PC Pad
