DPX162690DT-8022B2

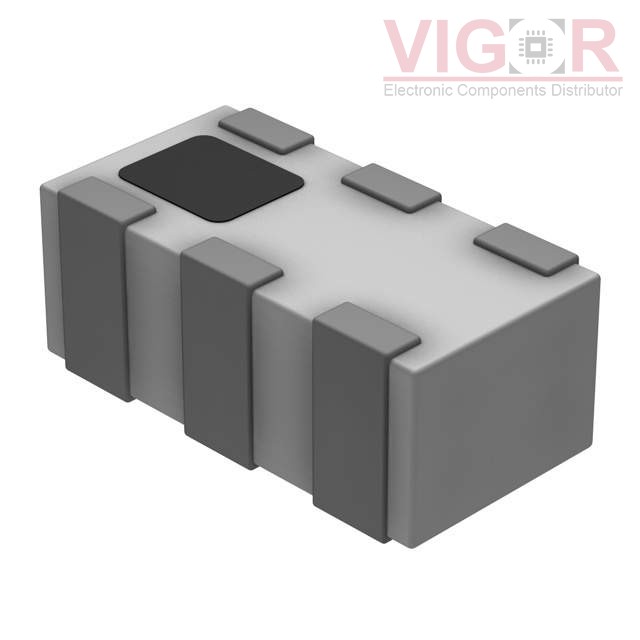

Image is for reference,
please contact us to get the real picture

Part No :: DPX162690DT-8022B2

Manufacturer: TDK Corporation

Description: RF DIPLEXER 832MHZ/2.2GHZ 0603

Catalog: RF Multiplexers

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: DPX162690DT-8022B2 PDF

Availability: 3037 pieces

Unit Price: ~~$1.44000~~

Current price of DPX162690DT-8022B2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPX162690DT-8022B2 Specifications

Type	Description
Series:	DPX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Diplexer
Frequency Bands (Low / High):	704MHz ~ 960MHz / 1.71GHz ~ 2.69GHz
Low Band Attenuation (min / max dB):	20.00dB / -
High Band Attenuation (min / max dB):	-
Return Loss (Low Band / High Band):	19.7dB / 9.9dB
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric), 6 PC Pad
