DPX162500DT-8014A1

DPX162500DT-8014A1

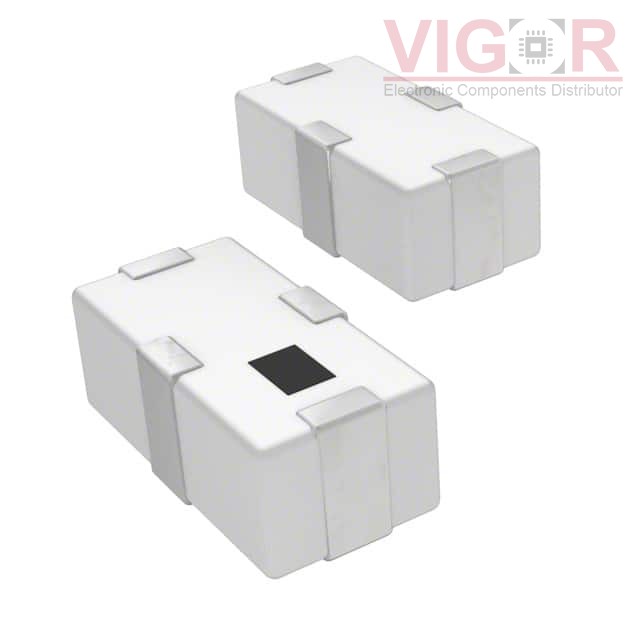

Image is for reference,
please contact us to get the real picture

Part No :

DPX162500DT-8014A1

Manufacturer
TDK Corporation
Description
RF DIPLEXER 1.575/2.45GHZ 0603
Catalog
RF Multiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
DPX162500DT-8014A1 PDF
Availability
1159 pieces
Unit Price
$1.16000

Current price of DPX162500DT-8014A1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPX162500DT-8014A1 Specifications
Type Description
Series:DPX
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Diplexer
Frequency Bands (Low / High):1.565GHz ~ 1.585GHz / 2.4GHz ~ 2.5GHz
Low Band Attenuation (min / max dB):20.00dB / -
High Band Attenuation (min / max dB):20.00dB / -
Return Loss (Low Band / High Band):9.5dB / 9.5dB
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric), 4 PC Pad
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
