DPX165950DT-8148A1

DPX165950DT-8148A1

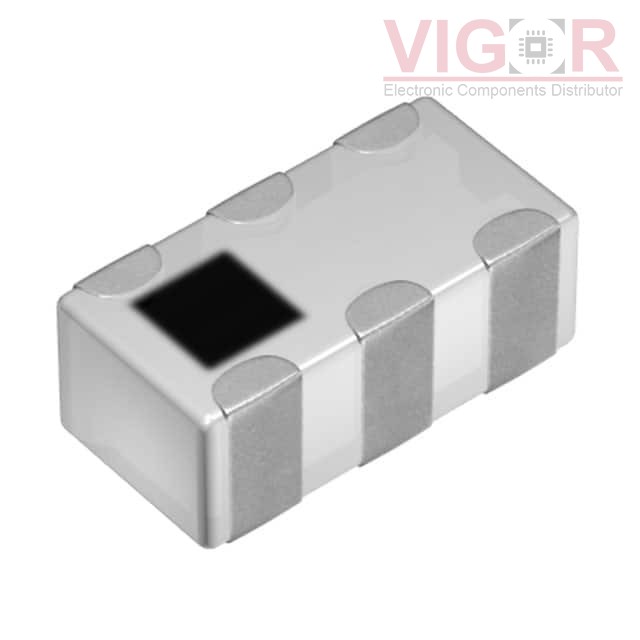

Image is for reference,
please contact us to get the real picture

Part No :

DPX165950DT-8148A1

Manufacturer
TDK Corporation
Description
RF DIPLEXER 2.45/5.425GHZ 0603
Catalog
RF Multiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
DPX165950DT-8148A1 PDF
Availability
3200 pieces
Unit Price
$0.33000

Current price of DPX165950DT-8148A1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPX165950DT-8148A1 Specifications
Type Description
Series:DPX
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Diplexer
Frequency Bands (Low / High):2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB):21.00dB / 36.00dB
High Band Attenuation (min / max dB):10.00dB / 42.00dB
Return Loss (Low Band / High Band):-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric), 6 PC Pad
