DPX202170DT-4149A1

DPX202170DT-4149A1

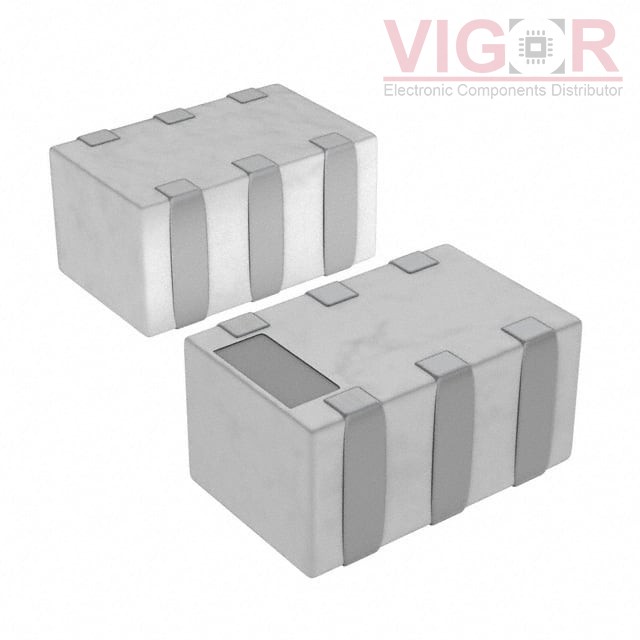

Image is for reference,
please contact us to get the real picture

Part No :

DPX202170DT-4149A1

Manufacturer
TDK Corporation
Description
RF DIPLEXER 892MHZ/1.94GHZ 0805
Catalog
RF Multiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
DPX202170DT-4149A1 PDF
Availability
2886 pieces
Unit Price
$0.88000

Current price of DPX202170DT-4149A1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPX202170DT-4149A1 Specifications
Type Description
Series:DPX
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Diplexer
Frequency Bands (Low / High):824MHz ~ 960MHz / 1.71GHz ~ 2.17GHz
Low Band Attenuation (min / max dB):15.00dB / 18.00dB
High Band Attenuation (min / max dB):20.00dB / 23.00dB
Return Loss (Low Band / High Band):20.0dB / 14.0dB
Mounting Type:Surface Mount
Package / Case:0805 (2012 Metric), 6 PC Pad
