DPX315950DT-5005B2

DPX315950DT-5005B2

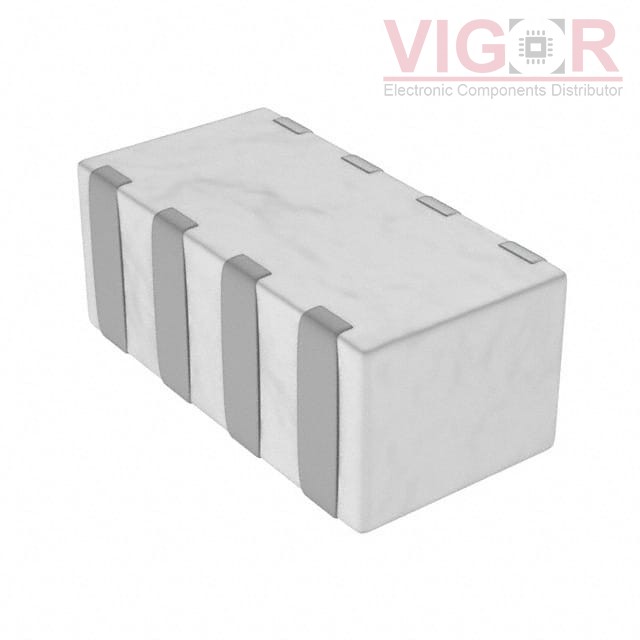

Image is for reference,
please contact us to get the real picture

Part No :

DPX315950DT-5005B2

Manufacturer
TDK Corporation
Description
RF DIPLEXER 2.4GHZ/5.425GHZ 1206
Catalog
RF Multiplexers
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
DPX315950DT-5005B2 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of DPX315950DT-5005B2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DPX315950DT-5005B2 Specifications
Type Description
Series:DPX
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Diplexer
Frequency Bands (Low / High):2.3GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz
Low Band Attenuation (min / max dB):18.00dB / -
High Band Attenuation (min / max dB):30.00dB / -
Return Loss (Low Band / High Band):15.0dB / 13.0dB
Mounting Type:Surface Mount
Package / Case:1206 (3216 Metric), 8 PC Pad
