HMC547ALP3E

HMC547ALP3E

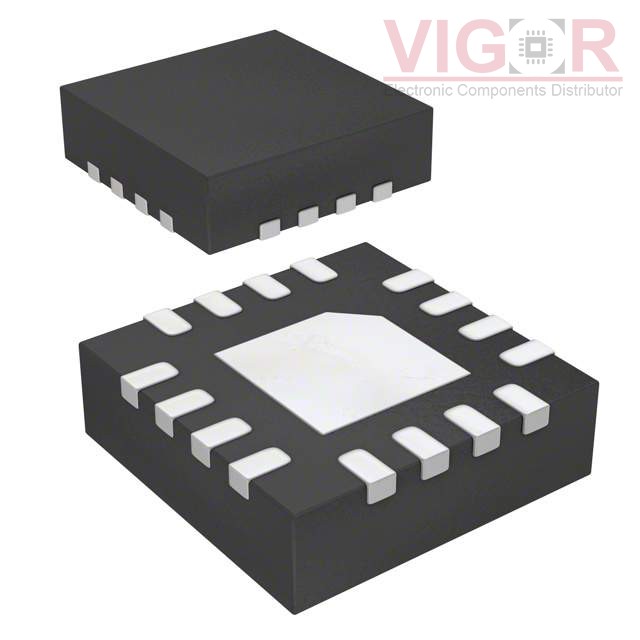

Image is for reference,
please contact us to get the real picture

Part No :

HMC547ALP3E

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC RF SWITCH SPDT 20GHZ 16QFN
Catalog
RF Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
HMC547ALP3E PDF
Availability
2818 pieces
Unit Price
$79.66000

Current price of HMC547ALP3E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HMC547ALP3E Specifications
Type Description
Series:-
Package:Strip
Part Status:Active
RF Type:VSAT
Topology:Absorptive
Circuit:SPDT
Frequency Range:0Hz ~ 20GHz
Isolation:38dB
Insertion Loss:2dB
Test Frequency:20GHz
P1dB:23dBm
IIP3:45dBm (min)
Features:-
Impedance:50Ohm
Voltage - Supply:-
Operating Temperature:-40°C ~ 85°C
Package / Case:16-VFQFN Exposed Pad
Supplier Device Package:16-QFN (3x3)
