JN5168/001,515

JN5168/001,515

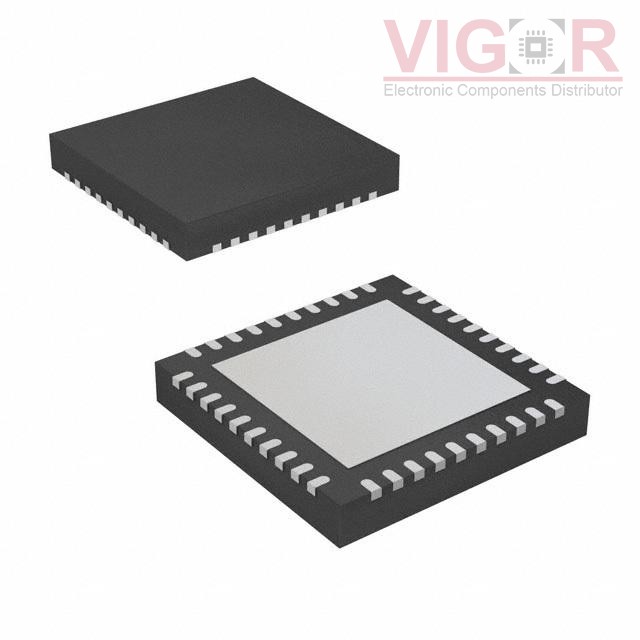

Image is for reference,
please contact us to get the real picture

Part No :

JN5168/001,515

Manufacturer
NXP Semiconductors
Description
IC RF TXRX+MCU 802.15.4 40VFQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
JN5168/001,515 PDF
Availability
6 pieces
Unit Price
$4.36000

Current price of JN5168/001,515 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JN5168/001,515 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:TxRx + MCU
RF Family/Standard:802.15.4
Protocol:ZigbeePRO®
Modulation:O-QPSK
Frequency:2.4GHz
Data Rate (Max):1Mbps
Power - Output:2.5dBm
Sensitivity:-96dBm
Memory Size:256kB Flash, 4kB EEPROM, 32kB RAM
Serial Interfaces:I²C, JTAG, SPI, UART
GPIO:20
Voltage - Supply:2V ~ 3.6V
Current - Receiving:17mA
Current - Transmitting:15.3mA
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:40-VFQFN Exposed Pad
Supplier Device Package:40-HVQFN (6x6)
