SPIRIT1QTR

SPIRIT1QTR

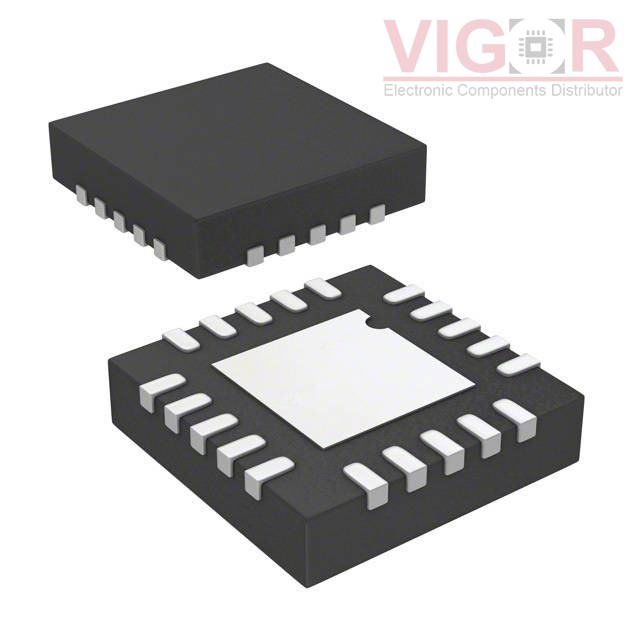

Image is for reference,
please contact us to get the real picture

Part No :

SPIRIT1QTR

Manufacturer
STMicroelectronics
Description
IC RF TXRX ISM<1GHZ 20VFQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
SPIRIT1QTR PDF
Availability
6 pieces
Unit Price
$2.94000

Current price of SPIRIT1QTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SPIRIT1QTR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:TxRx Only
RF Family/Standard:General ISM < 1GHz
Protocol:-
Modulation:2FSK, ASK, GFSK, GMSK, MSK, OOK
Frequency:150MHz ~ 174MHz, 300MHz ~ 348MHz, 387MHz ~ 470MHz, 779MHz ~ 956MHz
Data Rate (Max):500kbps
Power - Output:16dBm
Sensitivity:-118dBm
Memory Size:-
Serial Interfaces:SPI
GPIO:4
Voltage - Supply:1.8V ~ 3.6V
Current - Receiving:9.2mA ~ 9.8mA
Current - Transmitting:6mA ~ 54mA
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:20-VFQFN Exposed Pad
Supplier Device Package:20-QFN (4x4)
