LTC5800IWR-WHMA#PBF

LTC5800IWR-WHMA#PBF

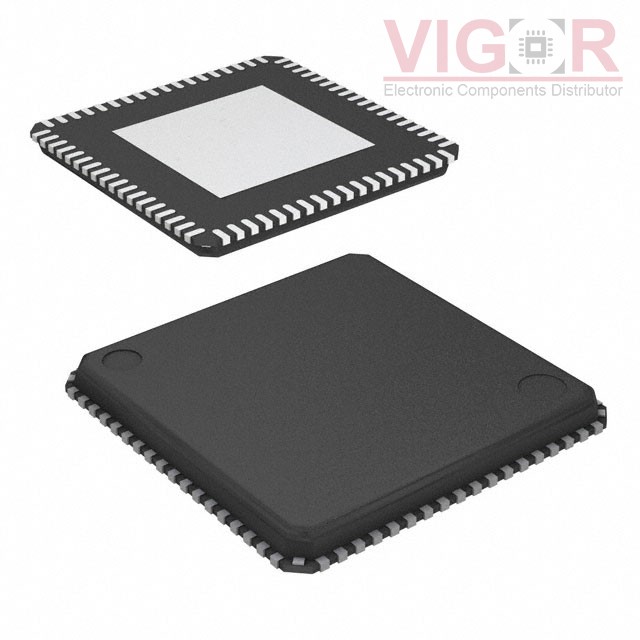

Image is for reference,
please contact us to get the real picture

Part No :

LTC5800IWR-WHMA#PBF

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
IC RF TXRX+MCU 802.15.4 72VFQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
LTC5800IWR-WHMA#PBF PDF
Availability
169 pieces
Unit Price
$63.27000

Current price of LTC5800IWR-WHMA#PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LTC5800IWR-WHMA#PBF Specifications
Type Description
Series:Dust Networks®, SmartMesh®, WirelessHART
Package:Tray
Part Status:Active
Type:TxRx + MCU
RF Family/Standard:802.15.4
Protocol:WirelessHART
Modulation:-
Frequency:2.4GHz
Data Rate (Max):250kbps
Power - Output:8dBm
Sensitivity:-95dBm
Memory Size:512kB Flash, 72kB SRAM
Serial Interfaces:I²C, JTAG, SPI, UART
GPIO:27
Voltage - Supply:2.1V ~ 3.76V
Current - Receiving:4.5mA
Current - Transmitting:5.4mA ~ 9.7mA
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:72-VFQFN Exposed Pad
Supplier Device Package:72-QFN (10x10)
