JN5169/001K

JN5169/001K

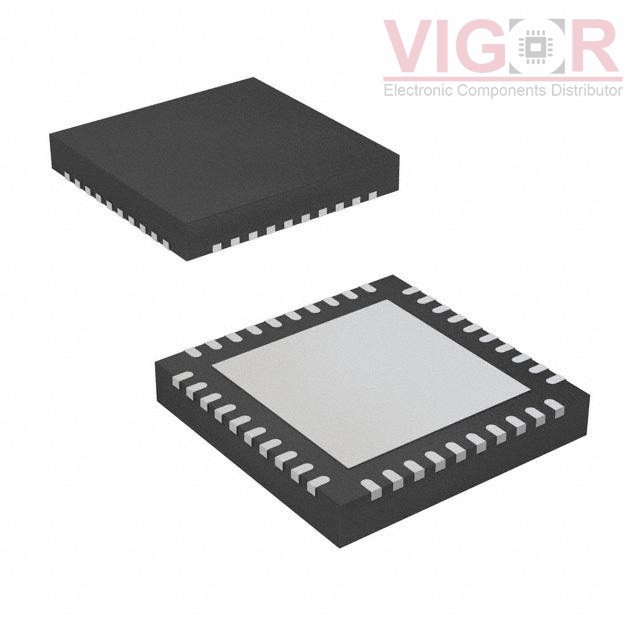

Image is for reference,
please contact us to get the real picture

Part No :

JN5169/001K

Manufacturer
NXP Semiconductors
Description
IC RF TXRX+MCU 802.15.4 40VFQFN
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
JN5169/001K PDF
Availability
313 pieces
Unit Price
$5.73000

Current price of JN5169/001K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JN5169/001K Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Type:TxRx + MCU
RF Family/Standard:802.15.4
Protocol:Zigbee®
Modulation:-
Frequency:2.4GHz
Data Rate (Max):-
Power - Output:10dBm
Sensitivity:-96dBm
Memory Size:512kB Flash, 4kB EEPROM, 32kB RAM
Serial Interfaces:I²C, SPI, UART
GPIO:20
Voltage - Supply:2V ~ 3.6V
Current - Receiving:14.7mA
Current - Transmitting:23mA
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:40-VFQFN Exposed Pad
Supplier Device Package:40-HVQFN (6x6)
