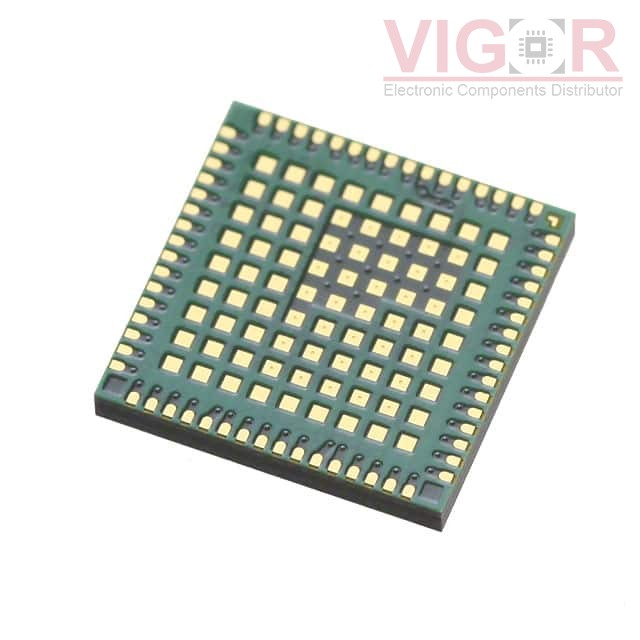

MC13224V

Image is for reference,
please contact us to get the real picture

Part No :

MC13224V

Manufacturer
NXP Semiconductors
Description
IC RF TXRX+MCU 802.15.4 145TFLGA
Catalog
RF Transceiver ICs
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
MC13224V PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MC13224V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tray
Part Status:Obsolete
Type:TxRx + MCU
RF Family/Standard:802.15.4
Protocol:Zigbee®
Modulation:O-QPSK
Frequency:2.4GHz
Data Rate (Max):250kbps
Power - Output:4dBm
Sensitivity:-100dBm
Memory Size:128kB Flash, 80kB ROM, 96kB SRAM
Serial Interfaces:I²C, I²S, JTAG, SPI, UART
GPIO:64
Voltage - Supply:2V ~ 3.6V
Current - Receiving:22mA ~ 24mA
Current - Transmitting:29mA
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:145-TFLGA
Supplier Device Package:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
HOT ATR2820-PNQG 83

ATR2820-PNQG 83

IC RF TXRX ISM>1GHZ 32VFQFN

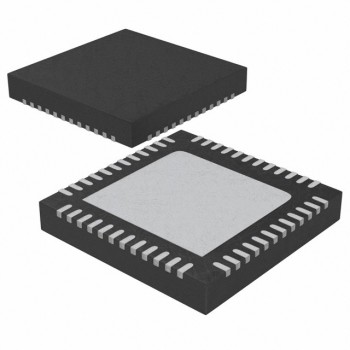

HOT T2802-PLH

T2802-PLH

IC RF TXRX ISM>1GHZ 48VFQFN

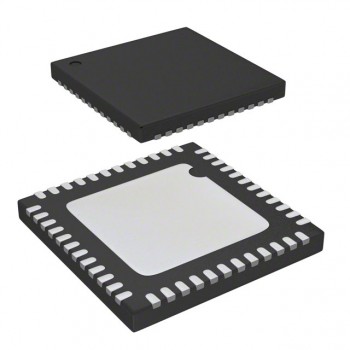

HOT EFR32BG1B232F256GM48-B0
